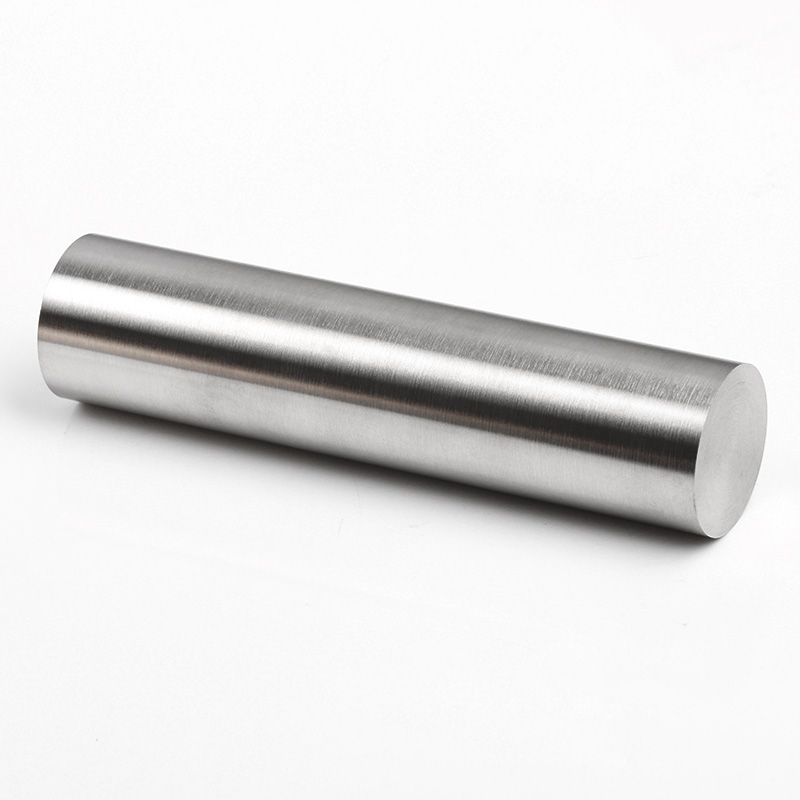

Introduction Tungsten alloy round bars, also known as tungsten heavy alloy (WHA) rods, are advanced composite materials manufactured through powder metallurgy. They are primarily composed of tungsten (W), which accounts for 85-98% of the material's weigh

Key Properties of Tungsten Alloy Round Bars

The exceptional performance of tungsten alloy round bars stems from a unique combination of physical and mechanical properties:

High Density: With densities ranging from 16.5 to 18.8 g/cm³, tungsten alloys are approximately 50-60% denser than lead. This allows for a significant amount of mass to be concentrated in a small volume.

High Melting Point & High-Temperature Strength: Inherited from pure tungsten (3422°C), these alloys maintain their structural integrity and strength at extremely high temperatures where most other metals would fail.

Excellent Hardness and Wear Resistance: The material is exceptionally hard and resistant to abrasion, scratching, and deformation, ensuring long service life for components under mechanical stress.

Superior Radiation Shielding Capability: Due to its high density and high atomic number, tungsten alloy is an excellent material for attenuating X-rays and gamma radiation, offering superior protection compared to traditional materials like lead.

Low Coefficient of Thermal Expansion: The material exhibits minimal expansion or contraction with temperature changes, providing excellent dimensional stability for precision components.

Good Machinability: Unlike pure tungsten, which is brittle and difficult to machine, the addition of binder metals makes the alloy significantly easier to cut, drill, turn, and mill into complex shapes.

High Modulus of Elasticity: The material is very stiff and resists bending or deflecting under load, which is critical for applications requiring rigidity.

Major Applications of Tungsten Alloy Round Bars

Thanks to this unique combination of properties, tungsten alloy round bars are utilized across a wide spectrum of demanding fields:

1. Military and Defense

Kinetic Energy Penetrators: This is a primary application. The high density and strength of tungsten alloy make it the ideal material for the cores of Armor-Piercing Fin-Stabilized Discarding Sabot (APFSDS) rounds, enabling them to penetrate heavily armored targets.

Fragmentation Warheads: In certain munitions, tungsten alloy is used to create pre-formed fragments that deliver high-impact energy upon detonation.

2. Aerospace and Aviation

Counterweights and Ballasts: Due to their high density, tungsten alloy bars are machined into compact counterweights for balancing control surfaces like ailerons, rudders, and elevators on aircraft and helicopters. They are also used as ballast in satellites and race cars to precisely adjust the center of gravity.

Vibration Damping: The material's stiffness and density are leveraged in "bucking bars" for riveting and in crankshaft balancers to absorb and dampen vibrations.

3. Medical Industry

Radiation Shielding: Tungsten alloy is a non-toxic and more effective alternative to lead. It is machined from round bars to create:

Collimators and Shields for radiotherapy machines (linear accelerators) to shape and direct radiation beams accurately to tumors.

Syringe Shields to protect medical personnel from radiation exposure when handling radiopharmaceuticals.

4. Industrial Tooling and Machining

Boring Bars and Grinding Quills: The high stiffness (modulus of elasticity) of tungsten alloy minimizes tool vibration and deflection during high-precision machining operations, resulting in smoother surface finishes and greater accuracy.

Tool Holders and Shanks: Used to provide a stable, vibration-resistant base for cutting tools.

5. Oil & Gas Exploration

Downhole Logging and Perforating: Tungsten alloy components are used as weights and shielding in logging tools (sondes) sent down boreholes. Their durability and density are essential in the harsh, high-pressure, and high-temperature environments of oil wells.

6. Sports and Recreation

High-Performance Darts: The high density allows for a slim, heavy dart barrel, enabling tighter groupings on the dartboard.

Golf Club Weights: Small tungsten alloy weights are strategically placed in golf club heads to optimize the center of gravity, improving stability and performance on impact.

Fishing Weights (Sinkers): They provide a smaller, more environmentally friendly alternative to lead weights, offering better sensitivity and sinking speed.

In summary, the tungsten alloy round bar is a versatile and high-performance semi-finished product. Its unparalleled combination of density, strength, and thermal resistance makes it an indispensable material for creating critical components that function reliably in the world's most extreme environments.
