Key Properties and Advantages of Tungsten Copper (W-Cu) Electrodes

What is a tungsten copper electrode? Why are tungsten copper composites preferred over pure copper or pure tungsten in applications exposed to extreme thermal and electrical loads?

To answer this, one must examine the distinct synergy of these two metals. Copper (Cu) is renowned for its superior electrical and thermal conductivity, whereas tungsten (W) features an exceptionally high melting point, high hardness, and superior resistance to heat and arc erosion.

A tungsten copper electrode is not a conventional melted alloy, but a metal-matrix pseudo-alloy (composite material) featuring a porous tungsten skeleton infiltrated with liquid copper.

Due to the vast disparities in crystal structure, melting point, and mutual solubility between tungsten and copper, HAO Tungsten Online manufactures W-Cu electrodes using advanced powder metallurgy techniques—primarily through tungsten skeleton pre-sintering followed by copper infiltration. Our product line covers standard and custom compositions ranging from WCu7 to WCu50, offering precision machining and tailored specifications engineered for diverse industrial operating conditions.

Compared with pure copper electrodes, tungsten copper offers significantly higher hardness, elevated thermal stability, and superior anti-arc erosion properties. Compared with pure tungsten, it retains outstanding electrical and thermal conductivity. By adjusting the W-to-Cu ratio, its electrical, thermal, and mechanical properties can be fine-tuned. HAO Tungsten Online leverages these characteristics to engineer custom tungsten copper electrodes designed to optimize tool life and performance under specific operating loads.

Performance Characteristics of Chinatungsten Manufactured Tungsten Copper (W-Cu) Electrodes



Property	Parameters	Description
Density	12.5～17.0 g/cm³	Increases with higher tungsten content
Melting Point	W: approx. 3422°C; Cu: approx. 1085°C	Significant difference in thermal physical properties between the two components
Electrical Conductivity	5～55% IACS	Electrical conduction relies primarily on the copper phase
Thermal Conductivity	180～330 W/(m·K)	Copper phase facilitates rapid heat dissipation/transfer
Hardness	150～300 HB	Tungsten content and microstructure have a significant impact on hardness
Tensile Strength	500～900 MPa	Dependent on composition ratio, relative density, and interfacial bonding
Coefficient of Thermal Expansion (CTE)	6～10 × 10⁻⁶/K (20～800℃)	Significantly lower than pure copper
Recrystallization Temperature	W > 1200°C (Conventional)	Tungsten phase provides excellent high-temperature microstructural stability
High-Temperature Stability	Maintains good microstructural stability at elevated temperatures	Tungsten phase primarily provides high-temperature resistance
Arc Erosion Resistance	Lower electrode wear rate compared to pure copper	Tungsten provides high resistance to arc erosion
Wear Resistance	Generally increases with higher tungsten content	Tungsten features high hardness and excellent wear resistance

Performance Specifications of Chinatungsten W-Cu Electrodes with Different Compositions

Grade	W Content	Cu Content	Density	Hardness	Conductivity	Resistivity	Tensile Strength
	(wt.%)	(wt.%)	(g/cm³)	(HB)	(%IACS)	(μΩ·cm)	(MPa)
W50Cu50	50	50	11.85	115	54	3.2	—
W55Cu45	55	45	12.3	125	49	3.5	—
W60Cu40	60	40	12.75	140	47	3.7	—
W65Cu35	65	35	13.3	155	44	3.9	—
W70Cu30	70	30	13.8	175	42	4.1	790
W75Cu25	75	25	14.5	195	38	4.5	885
W80Cu20	80	20	15.15	220	34	5	980
W90Cu10	90	10	16.75	260	27	6.5	1160

1. Electrical and Thermal Conductivity of W-Cu Electrodes

The capability of tungsten copper electrodes to perform in demanding electrical and heat-dissipating environments stems directly from their balanced conductive profiles. In short: copper transfers energy efficiently, while tungsten withstands the harsh thermal load.

• Electrical Conductivity: When electrical current passes through an electrode, it requires an uninterrupted, low-resistance path. The copper phase forms continuous conductive networks throughout the material. As the tungsten content increases, the copper ratio decreases, leading to a corresponding drop in electrical conductivity. Therefore, a higher tungsten content is not universally superior; the alloy ratio must be chosen based on current-density requirements.
• Thermal Conductivity: During operation, heat generated by current flow, micro-arcing, and friction must be dissipated rapidly. The high thermal conductivity of copper diffuses localized heat away from the working surface, preventing catastrophic thermal hot-spots.

While tungsten exhibits lower thermal conductivity than copper, its melting point (3422°C) ensures high-temperature stability. Tungsten copper achieves an engineered balance among current transmission, rapid heat spreading, and structural integrity under heat



2. Hardness and Wear Resistance

Electrodes are continuously subjected to mechanical clamping pressure, friction, and localized high-temperature spikes. Hardness and wear resistance are vital metrics for evaluating electrode service life:

• Microstructural Reinforcement: Tungsten functions as a rigid, wear-resistant framework, while ductile copper fills the interstitial voids. Tungsten's high intrinsic hardness reinforces the composite against localized indentation and structural deformation under mechanical loads, unlike pure copper which deforms easily.
• Frictional Wear Resistance: The hard tungsten phase bears mechanical loads and resists abrasive wear, maintaining dimensional accuracy over extended cycles.

Wear resistance depends not only on material hardness, but also on the W/Cu ratio, particle size distribution, density, porosity, and microstructural uniformity. Higher tungsten grades (e.g., WCu70, WCu80, WCu90) offer higher hardness and rigidity at the expense of ductility, whereas higher copper contents improve plasticity and machinability.

3. Tensile Strength and Mechanical Stability

Tensile strength reflects the maximum pulling force a material can withstand before fracture occurs. While hardness determines resistance to indentation and scratch wear, tensile strength determines resistance to catastrophic mechanical failure.

The tensile performance of a tungsten copper electrode is governed by its composition, sintering quality, density, and manufacturing process:

• Increasing tungsten content boosts the overall stiffness and hardness of the composite, though it also reduces ductility.
• As mechanical loads, tool clamping pressures, and thermal shock vary across industrial equipment, selecting the appropriate W-Cu grade requires balancing strength, toughness, and thermal dissipation.



4. Low Coefficient of Thermal Expansion (CTE)

The Coefficient of Thermal Expansion (CTE) measures how much a material expands or contracts during temperature fluctuations. A low and predictable CTE prevents dimensional instability and thermal stress failure when bonded with adjacent materials.

Pure copper features a relatively high CTE (~17×10−6/K17×10−6/K), whereas tungsten has a remarkably low CTE.

By altering the tungsten-to-copper ratio, the composite's CTE can be customized precisely:

W90Cu10: ≈6.5×10−6/K≈6.5×10−6/K

W80Cu20: ≈8.3×10−6/K≈8.3×10−6/K

W70Cu30: ≈10.8×10−6/K≈10.8×10−6/K

This adjustable CTE makes tungsten copper indispensable in electronic packaging, microelectronics, and power semiconductor heat sinks. By matching the CTE of W-Cu to that of ceramic substrates (Al2O3,AlNAl2O3,AlN) or silicon/GaAs chips, thermal fatigue caused by mismatched expansion is substantially minimized.



5. Recrystallization Temperature and High-Temperature Stability

Recrystallization temperature marks the threshold where metal grains nucleate and rearrange, leading to thermal softening and loss of mechanical strength.

• The Copper Phase: Pure copper undergoes recrystallization around 400°C. As temperatures rise toward 800°C, internal lattice strain in copper relaxes, which can paradoxically stabilize electrical conductivity, though structural stiffness drops.
• The Tungsten Skeleton: Tungsten retains its structural rigidity well above 1200°C, preventing the electrode from collapsing.
• Sweating Cooling (Transpiration Effect): Under extreme, localized high-temperature arcs, the copper phase melts and evaporates. This phase transition absorbs massive amounts of latent heat, acting as an integrated, self-cooling mechanism that shields the tungsten skeleton from structural collapse.

6. Arc Erosion Resistance (EDM Performance)

In Electrical Discharge Machining (EDM) and high-voltage electrical contacts, the electrode surface is repeatedly bombarded by high-energy discharge sparks and electrical arcs. The ability to resist this continuous burning and vaporization is known as anti-arc erosion performance.

Tungsten copper outperforms standard electrode materials through complementary phase properties:

1. The Tungsten Fire Wall: With a melting point of ~3422°C, the refractory tungsten skeleton forms a stable, arc-resistant boundary that inhibits copper melt-off.

2. Thermal Dissipation & Arc Quenching: The high thermal conductivity of copper rapidly transfers surface heat, and copper vaporization absorbs electric arc energy, lowering the instantaneous gap temperature.



Comparative EDM Performance Advantages:

• EDM of Stainless Steel: Copper-tungsten electrodes achieve a material removal rate (MRR) equivalent to ~85.7% of pure copper, while reducing relative electrode wear to just 42.9% compared to copper.
• EDM of Tungsten Carbide (Cemented Carbide): Tungsten copper electrodes exhibit dramatically lower corner and edge wear than pure copper or graphite electrodes, ensuring sharp details and tight geometric tolerances in precision mold and die manufacturing.
• Composition Rule: Lower copper content correlates with reduced electrode burn-off. Lower-copper grades (e.g., WCu80, WCu85) deliver superior arc erosion resistance in demanding electrical discharge environments.

Summary: Custom Tungsten Copper Solutions

Whether for resistance welding, EDM tooling, high-voltage electrical contacts, or thermal management heat sinks, selecting the right tungsten-copper grade depends on a balance of electrical conductivity, arc wear resistance, and mechanical requirements.

HAO Tungsten Online provides high-density, low-porosity tungsten copper products with customized formulations and precision CNC machining services to meet your engineering demands.

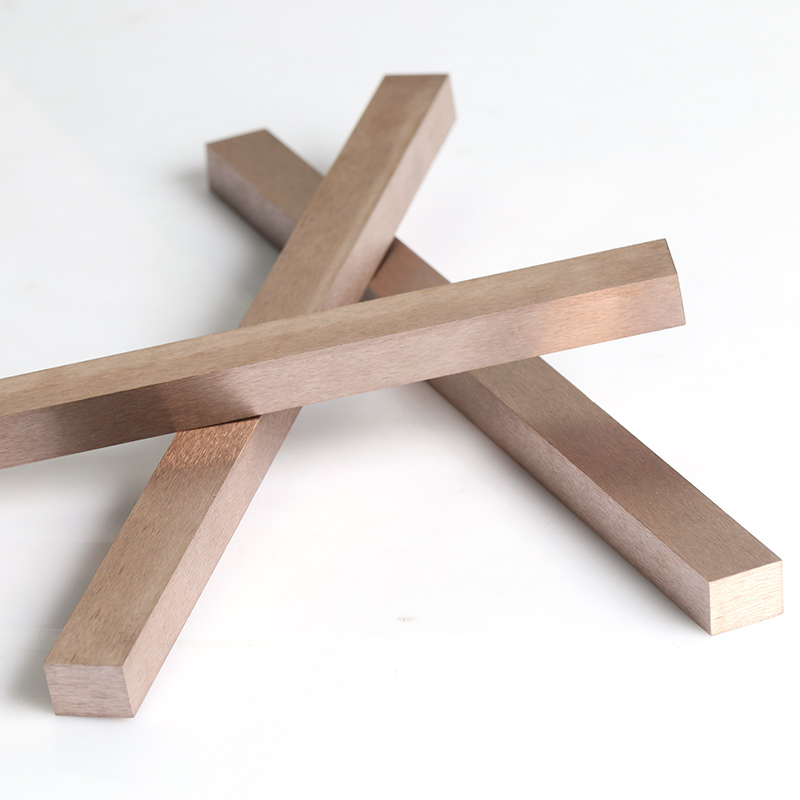

• Tungsten copper electrode:
