Pioneering Precision: The Strategic Future of Ultra-Micro Carbide Drills and High Aspect Ratio Technology

I. The Micro-Revolution of Carbide Materials: From Micron to Nano-Scale

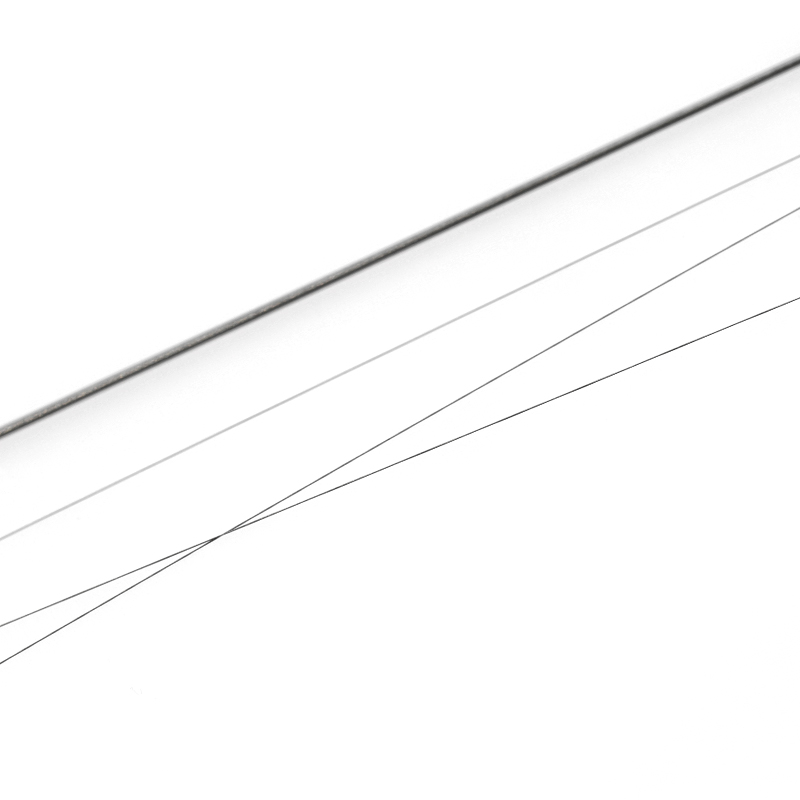

1.1 Physical Characteristics of Ultra-Fine Grain Tungsten Carbide

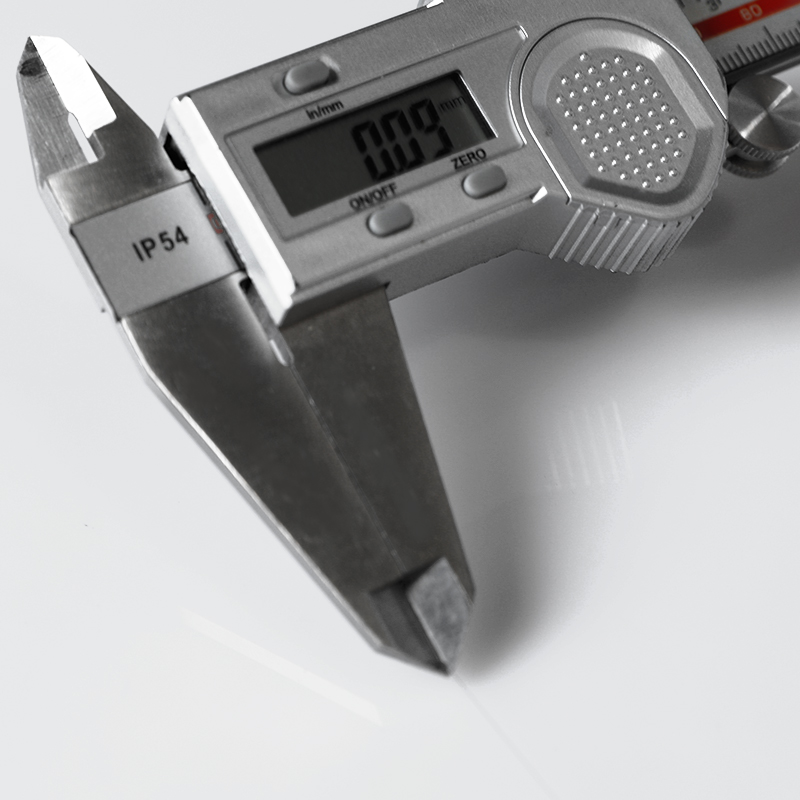

l Manufacturing micro-drills with diameters between 0.1mm and 0.2mm demands an uncompromising balance between Hardness and Toughness. Standard carbide grades often fail under the extreme stresses of micro-scale drilling.

l Grain Size Breakthrough: Industry leaders now utilize nano-grain or ultra-fine grain tungsten carbide powders. When the grain size is reduced to below 0.4μm, the Transverse Rupture Strength (TRS) increases significantly, allowing the tool to withstand the high-frequency alternating stresses of high-speed rotation.

l Cobalt (Co) Optimization: For PCB applications, cobalt content is precisely calibrated (typically 8%-12%). Through advanced phase-structure control, we ensure that the drill tip maintains its integrity even at rotational speeds exceeding 150,000 to 300,000 RPM.

1.2 Thermal Stability in High-Speed Machining

During the drilling process, the instantaneous temperature at the drill tip can reach several hundred degrees Celsius. High-performance carbide must possess superior red hardness to prevent the cutting edge from softening, which would lead to hole-wall burrs or diameter shrinkage.

II. Overcoming Technical Barriers in Ultra-Micro Drills (<0.2mm)

2.1 Precision Control of Geometric Parameters

For drills with diameters below 0.2mm, the geometry—specifically the flute design—is the difference between success and failure.

Chip Evacuation: In micro-drilling, the space within the flute is microscopic. Any inefficiency in chip removal leads to clogging and instantaneous needle breakage.

Web Thickness: Design must be optimized to provide maximum rigidity while leaving enough "valley" for chips to escape.

2.2 The Challenge of Limit-Manufacturing

Producing these tools requires world-class 5-axis CNC grinding centers (such as Rollomatic or ANCA).

1. Run-out Control: For a 0.1mm drill, the run-out must be maintained within the micron (μm) range. Even a slight deviation causes uneven force distribution, leading to premature edge chipping upon entry.

2. Edge Honing: Utilizing specialized micro-polishing or passivation techniques eliminates grinding micro-cracks, significantly extending the tool's fatigue life.

III. High-Performance Coatings: The "Body Armor" for Micro-Drills

Coating technology is the primary lever for increasing tool life and improving Hole Quality (HQ).

3.1 Key Coating Technologies

l DLC (Diamond-Like Carbon) Coating: Characterized by an extremely low friction coefficient and high hardness. It is particularly effective for high-resin content boards, preventing the "sticking" of aluminum or composite materials to the drill.

l AlTiN / TiAlN Coatings: These provide exceptional thermal stability, ideal for drilling dense, thick boards where heat accumulation is the primary cause of tool wear.

3.2 Impact on Hole Wall Quality

Advanced coatings reduce drilling force and heat buildup, effectively suppressing phenomena such as hole wall voids and Pink Ring (inner layer copper stretching). In IC substrate manufacturing, coated drills are the only viable solution for high-precision blind and through-hole drilling.

IV. High Aspect Ratio (HAR): The Vital Tool for High-Layer Boards

As server and data center PCBs increase in layer count (reaching 20–40+ layers), the ratio of board thickness to hole diameter (Aspect Ratio) continues to climb.

4.1 The Technical Pain Points

When the aspect ratio exceeds 15:1 or even 25:1, drills face two critical risks:

1. Hole Wander (Drift): The drill bit may flex during deep-hole processing, leading to misregistration with the bottom-layer pads.

2. Breakage Risk: The long path for chip evacuation results in exponentially higher friction.

4.2 Solutions: Variable Helix Design and Peck Drilling

To address this, we implement gradient helix angles to improve chip flow and utilize specialized self-centering tips to reduce drift, ensuring high verticality in the deepest holes.

V. Key Application Scenarios and Growth Sectors

5.1 IC Substrates and Semiconductor Packaging

This is currently the most demanding sector. The processing of BT and ABF substrates requires 0.1mm and smaller micro-drills, representing the highest unit value in the market.

5.2 5G/6G and AI Servers

AI servers utilize PCBs with high frequency, high speed, and massive layer counts. High aspect ratio drills are irreplaceable for processing the complex Backplanes and Motherboards that power the modern cloud.

5.3 Automotive Electronics

The rise of Autonomous Driving (AD) requires PCBs with extreme reliability. High-performance coated drills ensure that hole position accuracy remains consistent throughout large-scale production runs, meeting stringent safety standards

VI. Future Market Potential and Trends

1. Accelerated Localization: With breakthroughs in domestic carbide preparation, the micro-drill market is seeing a shift toward high-quality regional suppliers capable of matching global standards.

2. Green Manufacturing: Coated drills reduce the need for cooling lubricants and extend regrinding cycles, aligning with global ESG (Environmental, Social, and Governance) trends.

3. Smart Manufacturing Integration: Future drills will work in tandem with intelligent monitoring systems, using real-time torque and vibration feedback for predictive maintenance.

Conclusion:

The world below 0.2mm is a reflection of the heights of precision manufacturing. Our company remains dedicated to material innovation and coating breakthroughs, providing the foundational technical support for the global electronics industry. In the new era of High-Layer boards and IC substrates, high-performance carbide micro-drills will continue to be the cornerstone of technological progress.
