Understanding the Thermal Conductivity of Tungsten-Copper (W-Cu) Alloys

In many industrial applications, wherever electric current flows, heat generation inevitably follows. Conventional copper materials offer outstanding electrical and thermal conductivity, making copper widely used in wires, heat dissipation components, and various conductive parts. However, when a component must not only conduct current but also withstand elevated temperatures, mechanical wear, or repeated thermal cycling, relying solely on copper's thermal conductivity is often insufficient.

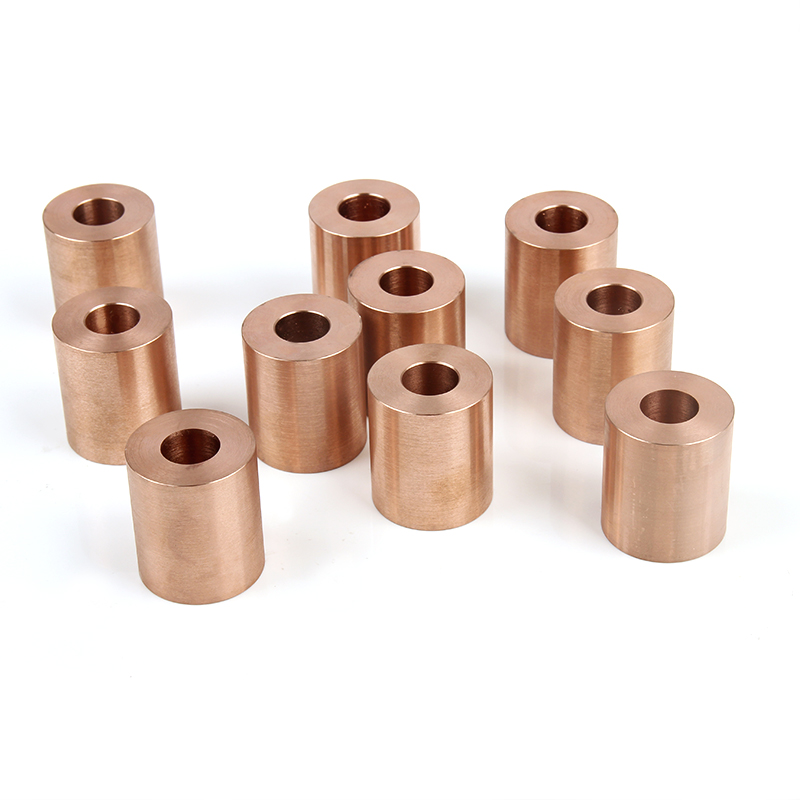

Tungsten-copper (W-Cu) alloy is a composite material engineered precisely to meet these demanding operational requirements. Composed of distinct tungsten and copper phases, it harnesses copper's superior thermal and electrical conductivity while leveraging tungsten's high melting point, high hardness, and low coefficient of thermal expansion (CTE). Utilizing these unique properties, HAO CARBIDE manufactures high-performance products including EDM (Electrical Discharge Machining) electrodes, resistance welding electrodes, high-voltage electrical contacts, and semiconductor heat sinks.

1. Why Do Tungsten-Copper Alloys Conduct Heat?

Heat transfer in metals can be understood as the migration of internal energy from higher-temperature regions to lower-temperature regions, primarily driven by free electron motion and lattice vibrations within the metal matrix.

Copper is a premier thermal conductor, making the copper phase the primary conduit for heat dissipation in W-Cu materials. However, tungsten-copper alloys are not homogeneous, single-phase solid solutions formed by mutually melting tungsten and copper. Instead, the two elements are virtually mutually insoluble and maintain independent phase states. Consequently, the actual heat transfer capability cannot be evaluated simply by the copper weight percentage alone.

When evaluating the thermal conductivity of a W-Cu alloy, two critical factors must be considered:

The volume fraction of the heat-conducting copper phase within the material.
Whether this copper phase forms a continuous, interconnected network throughout the microstructure.

2. Influence of Composition (W/Cu Ratio) on Thermal Conductivity

The W/Cu ratio is the foundational parameter governing the thermal conductivity of tungsten-copper alloys. For instance, WCu50 indicates a mass ratio of tungsten to copper of approximately 50:50, while WCu80 represents approximately 80% tungsten and 20% copper. Generally, as the tungsten proportion increases and copper content decreases, thermal conductivity exhibits a downward trend.

From an engineering perspective, however, a higher copper content is not necessarily optimal for every operating environment. While increasing copper enhances thermal and electrical conductivity, it also alters key characteristics such as density, coefficient of thermal expansion, and mechanical hardness.

Therefore, when tailoring tungsten-copper products for customers, HAO CARBIDE never selects a material based solely on a generic requirement for "high thermal conductivity." Instead, our engineers evaluate the working temperature, thermal flux, dimensional constraints, mechanical stresses, and whether the component must simultaneously serve electrical transmission duties.

3. Influence of Microstructure on Thermal Conductivity

3.1 Tungsten Particle Size and Morphology

The interior of a W-Cu composite is neither purely continuous copper nor purely solid tungsten; rather, it is a composite matrix consisting of tungsten particles interspersed with copper. During production, HAO CARBIDE strictly controls tungsten particle size, morphology, and spatial distribution.

Effect of Particle Size:
The particle size of tungsten powder directly dictates the microstructure formed during sintering and infiltration. Finer tungsten particles exhibit a higher specific surface area, which alters particle contact and copper phase distribution. Coarser tungsten particles tend to establish a distinctly different tungsten skeleton.
Heat does not merely travel within the tungsten particles; it must cross the interfaces between the tungsten and copper phases. Consequently, particle size variations directly alter interfacial density and thermal pathways. However, this does not mean that finer is always better: excessively fine powder introduces a higher density of thermal resistance interfaces and risks agglomeration, whereas overly coarse particles may impair microstructural uniformity.
Effect of Particle Shape:
Beyond size, particle shape plays a critical role. Spherical, near-spherical, irregular, or angular particles exhibit distinct contact mechanics during compaction, sintering, and infiltration.
Interparticle contact governs skeleton formation, while interstitial spaces dictate how molten copper infiltrates. Uniformly distributed particles enable copper to disperse evenly, creating a more stable conductive structure. Conversely, irregular shapes or severe agglomeration can lead to localized tungsten clustering and uneven copper pooling, disrupting thermal dissipation routes.

3.2 Material Densification and Relative Density

If a W-Cu composite is viewed as an integrated thermal pathway, internal pores act as thermal voids.

In an ideal state, the tungsten and copper phases form continuous, unbroken pathways for heat conduction. If significant internal porosity is present, the effective cross-sectional area available for conduction diminishes, and heat transfer paths become tortuous, degrading actual thermal conductivity.

This is why specifying W-Cu products requires looking beyond chemical composition to ensure high densification. Achieving a fine, homogeneous microstructure alongside high relative density is essential for maximizing thermal and electrical performance.

3.3 The Role of the Tungsten-Copper Interface

Phase boundaries exist between the tungsten and copper phases, and thermal energy must cross these W/Cu interfaces during heat dissipation.

Tungsten and copper possess vastly different crystal structures and thermal expansion characteristics. Under high-temperature cyclic loads, W/Cu interfaces experience notable thermal stress. When the bonding interface is structurally sound and coherent, heat transfer proceeds smoothly. If micro-defects or poor localized bonding occur at the boundary, interfacial thermal resistance increases, impeding overall heat transfer.

4. How Manufacturing Processes Shape W-Cu Thermal Conductivity

The manufacturing process progressively shapes and defines the internal microstructure of tungsten-copper products.

W-Cu alloys are predominantly manufactured using the tungsten skeleton infiltration method, which comprises tungsten powder preparation, blending, forming, skeleton sintering, and molten copper infiltration. Process parameters—such as infiltration temperature and holding time—directly govern the bonding state of tungsten particles, copper phase distribution, residual porosity, and final density, directly dictating the thermal performance of the finished component.

When engineering custom tungsten-copper solutions, HAO CARBIDE holistically integrates material ratios, raw powder characteristics, pressing techniques, thermal infiltration cycles, and precision CNC machining to deliver dependable, optimized thermal conductivity tailored to your application.
