Tungsten Carbide Rods: A Comprehensive Guide to Materials, Applications, and Future Prospects

1.  Introduction

In the continuous global pursuit of higher efficiency, longer service life, and more precise machining in manufacturing and engineering, the development and application of advanced materials have become paramount. Tungsten carbide, particularly in the form of tungsten carbide-based rods, is a key material capable of meeting demanding operational requirements. It is not only the core substrate for manufacturing high-performance cutting tools (such as end mills, drills, and reamers) but also demonstrates unparalleled performance in numerous applications requiring high wear resistance and strength. Understanding the characteristics and potential of tungsten carbide rods is crucial for optimizing production processes, enhancing product quality, and driving technological innovation.

2. What is Tungsten Carbide?

l 2.1.  Material Composition

Cemented carbide is a composite material primarily composed of hard phase carbides (mainly tungsten carbide, WC) and a metallic binder phase (usually cobalt Co, sometimes nickel Ni or iron Fe). Tungsten carbide particles provide extremely high hardness and wear resistance, while the metal binder offers necessary toughness and strength, sintering the hard particles together.

Tungsten Carbide (WC) Grains: As the skeletal phase, its content typically ranges from 70% to 97% by weight. The grain size of WC (from sub-micron to coarse grain) significantly influences the final properties of the alloy. Fine grains generally enhance hardness and wear resistance, while coarse grains improve toughness.

Binder Metal: Cobalt (Co) is the most commonly used binder, with content generally between 3% and 30%. Cobalt effectively wets WC particles, forming a strong bond. Nickel (Ni)-based binders offer better corrosion resistance. Increasing binder content improves toughness but reduces hardness and wear resistance.

Other Additives: Small amounts of other carbides, such as titanium carbide (TiC), tantalum carbide (TaC), or niobium carbide (NbC), are sometimes added to inhibit grain growth, improve high-temperature hardness, or enhance resistance to crater wear, especially in steel cutting applications.

l 2.2. Key Properties

The superior properties of tungsten carbide rods stem from their unique microstructure and compositional blend:

High Hardness: Typically ranging from HRA 85-95, second only to diamond, enabling them to cut hardened steels and other high-hardness materials.

Exceptional Wear Resistance: Exhibits extremely low wear rates under high friction and abrasive wear conditions, ensuring long life for tools and components.

High Compressive Strength: Capable of withstanding enormous pressure without plastic deformation.

Good Transverse Rupture Strength (TRS): An important indicator of a material's ability to resist bending fracture, crucial for tools subjected to cutting forces and impacts.

High Modulus of Elasticity: Means the material has good rigidity and is not easily deformed.

Good Thermal Stability: Maintains high hardness and strength at elevated temperatures, exhibiting good "hot hardness."

Relatively High Density: Approximately twice that of steel.

Adjustable Properties: By varying WC grain size, binder type, and content, the hardness, toughness, and wear resistance of tungsten carbide can be tailored to suit different application needs.

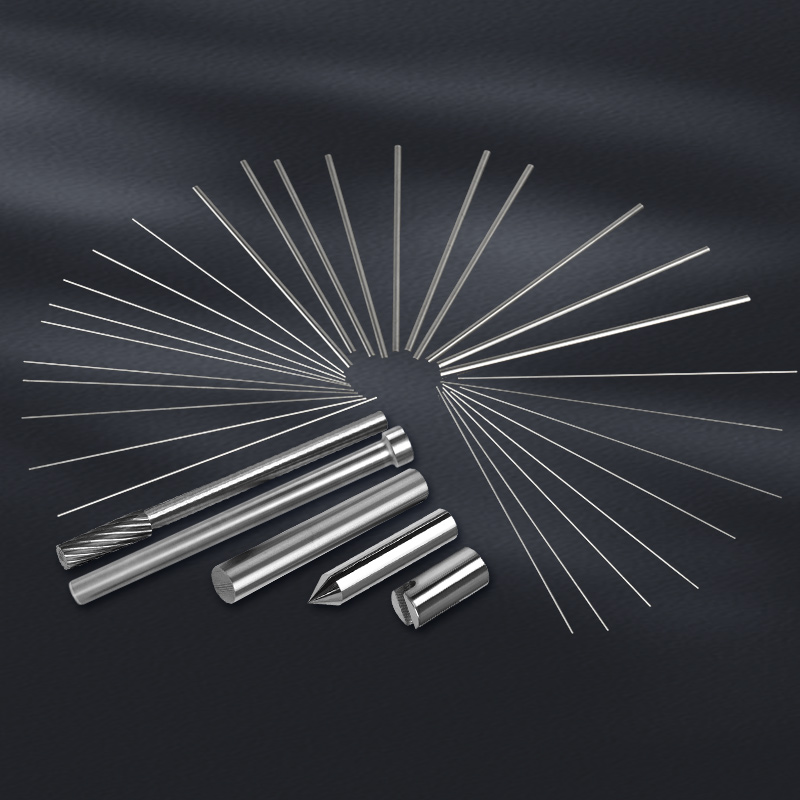

3. Types of Tungsten Carbide Rods

Tungsten carbide rods can be classified into various types based on their manufacturing state, internal structure, and grade:

Solid Rods: The most common type, without internal holes, widely used for manufacturing solid end mills, drills, reamers, punches, etc.

Rods with Coolant Holes:

Rods with Straight Coolant Holes: Typically have one or two coolant holes parallel to the rod's axis, used to improve cooling and chip evacuation in the cutting zone, especially suitable for deep hole machining or high-speed cutting.

Rods with Helical Coolant Holes: Coolant holes are helically distributed, delivering coolant more effectively to the cutting edge, further enhancing cooling and chip removal capabilities. This type involves more complex manufacturing processes.

Unground Rods / As-Sintered Rods: Rods that have not undergone precision grinding after sintering, usually with sintering tolerances on the surface. They are lower in cost and suitable for applications with less stringent dimensional accuracy requirements or for customers who perform subsequent precision machining themselves.

Ground Rods: Rods that have undergone precision centerless grinding, featuring tight diameter tolerances (e.g., h5, h6) and good surface finish, ready for direct use in manufacturing high-precision tools.

Rods of Different Grades:

Ultra-fine Grain: E.g., 0.2-0.5μm WC grains, often combined with higher cobalt content (e.g., 10-12%), used for high-performance cutting tools requiring high cutting edge strength and wear resistance, such as milling cutters for hardened steel.

Fine Grain: E.g., 0.5-0.8μm, offering a good balance of properties, widely used.

Medium Grain: E.g., 1.0-2.0μm, generally offering better toughness, suitable for applications with higher impact loads.

Varying Cobalt Content: Low cobalt content (e.g., 6% Co) provides high hardness and wear resistance, suitable for finishing operations under stable conditions; high cobalt content (e.g., 10-15% Co) offers better toughness, suitable for interrupted cutting or impact loads.

4. Manufacturing Process

The manufacturing of tungsten carbide rods is a complex, multi-step process, primarily including:

Powder Preparation:

Mixing: Precisely weighing high-purity tungsten carbide powder, cobalt powder (or other binder powders), and potential additives according to the performance requirements of the desired grade.

Wet Milling: The mixture, along with grinding media (like carbide balls) and an organic solvent (like alcohol or hexane), is placed in a ball mill for extended grinding. The purpose is to achieve uniform mixing of all components and refine particles to the desired size distribution.

Drying and Granulation: The milled slurry is dried, often through spray drying, to remove the solvent and form spherical or near-spherical granules with good flowability and pressing properties.

Pressing / Compaction:

The prepared powder mixture is filled into molds and subjected to high pressure using automatic presses, isostatic presses, or extrusion machines to form a green compact of the desired shape and size. Extrusion is a common and efficient method for rods.

Sintering:

Pre-sintering / Dewaxing: The green compact is heated at a lower temperature (typically 600-900°C) to slowly remove organic binders or lubricants added during forming.

High-Temperature Sintering: The dewaxed compact is heated to a high temperature (typically 1350-1600°C, slightly below the melting point of the binder metal) in a vacuum sintering furnace or a hydrogen atmosphere furnace. During this process, the binder metal melts and fills the pores between WC particles, densifying the compact through liquid phase sintering, causing volume shrinkage and forming the final properties of the cemented carbide.

Hot Isostatic Pressing (HIP): Some high-performance grades undergo HIP treatment after sintering. The sintered part is placed in a high-temperature, high-pressure environment (using an inert gas like argon) to eliminate any residual internal microporosity, further enhancing the material's density and mechanical properties.

Post-Sintering Processing (Optional):

Grinding: Precision centerless grinding of the as-sintered rods to achieve accurate diameter dimensions, tolerances, and surface finish.

Cutting to Length: Cutting long rods to specific lengths as required.

Chamfering: Chamfering the ends of the rods.

Quality Inspection:

Finished products undergo various tests, including dimensional checks, visual inspection, hardness, density, transverse rupture strength, and metallographic analysis (WC grain size, porosity, presence of η-phase, etc.) to ensure they meet specification requirements.

5. Main Applications of Tungsten Carbide Rods

Due to their outstanding properties, tungsten carbide rods are widely used in the following fields:

Cutting Tools: This is the primary application area for carbide rods.

Solid Carbide End Mills: Used for milling various materials.

Drills: Used for drilling holes in workpieces.

Reamers: Used to improve the accuracy and surface finish of holes.

Taps: Used for machining internal threads.

Hobs and Shaper Cutters: Used for gear machining.

Engraving Bits: Used for precision engraving.

Wear Parts:

Punches and Dies: Used in stamping, deep drawing, powder metallurgy forming, etc.

Nozzles: Such as sandblasting nozzles, waterjet nozzles, utilizing their high wear resistance.

Guide Bushes/Pins: Used for guiding and positioning in precision machinery.

Seal Rings: Used as mechanical seals in pumps and compressors.

Gauges: Such as plug gauges, snap gauges, due to their good dimensional stability.

Mining and Construction Tools:

Used as substrates for manufacturing PCD (Polycrystalline Diamond) drill bits or percussion drill bits.

In some cases, directly used as components for small percussion drills or rock drilling tools.

Structural Components:

Used as support rods or shafts in special equipment requiring high rigidity, high wear resistance, and dimensional stability.

Other Applications:

Medical Instruments: Certain specific, biocompatibility-treated carbide grades can be used for surgical instruments or implant components, but require special grades and treatments.

Textile Industry: Used as yarn guides, thread cutters, etc.

Woodworking Tools: For example, finger joint cutters, router bits.

6. Choosing the Right Tungsten Carbide Rod

Selecting the appropriate tungsten carbide rod is crucial for ensuring the performance and lifespan of the final product. The following factors need to be considered:

Application Requirements:

Workpiece Material: Machining high-hardness materials (e.g., hardened steel, superalloys) requires grades with high hardness and hot hardness (usually fine or ultra-fine grain, lower cobalt content). Machining soft materials (e.g., aluminum alloys, copper) places higher demands on toughness.

Type of Operation: Continuous cutting (e.g., finishing) is suitable for high-hardness grades; interrupted cutting or impact loads (e.g., rough milling, drilling) require grades with better toughness (usually higher cobalt content or coarser grains).

Precision Requirements: High-precision tools typically require ground rods (h5, h6 tolerance).

WC Grain Size:

Ultra-fine/Fine Grain: Offers high hardness, high wear resistance, and good cutting edge retention, suitable for finishing and machining hard materials.

Medium/Coarse Grain: Provides better toughness and impact resistance, suitable for roughing or conditions prone to vibration.

Cobalt Content:

Low Cobalt (e.g., 3-8%): High hardness, good wear resistance, but lower toughness.

Medium Cobalt (e.g., 9-12%): Good balance of hardness and toughness, most widely used.

High Cobalt (e.g., 13-25%): Good toughness, strong impact resistance, but relatively lower hardness and wear resistance.

Need for Coolant Holes:

For deep hole machining, high-speed cutting, or machining difficult-to-cut materials, rods with coolant holes can significantly improve cooling and chip evacuation, enhancing tool life and machining quality.

Dimensions and Tolerances:

Select appropriate diameter, length, and tolerance grade based on the final tool design.

Cost Considerations:

Special grades, rods with helical holes, ultra-fine grains, or HIP-treated rods are more expensive. A trade-off between performance and cost is necessary.

Supplier Reliability and Technical Support:

Choose suppliers with a good reputation who can provide stable quality and technical support.

7. Future Trends and Developments

The technology in the field of tungsten carbide rods continues to advance, with future development trends likely to include:

New Binder Systems: Developing alternatives to cobalt or modified cobalt-based binders to improve toughness, corrosion resistance, or high-temperature performance, while addressing cobalt resource and cost issues.

Functionally Graded Carbides: Designing gradient materials with high surface hardness and good internal toughness to simultaneously meet different performance requirements.

Nanocrystalline Carbides: Further refining WC grains to the nanometer scale, potentially achieving an even better combination of hardness and wear resistance.

Advanced Coating Technologies: While rods are substrates, complementary coating technologies (like PVD, CVD) will continue to evolve to further enhance the performance of tools made from them.

Additive Manufacturing / 3D Printing: Exploring the use of 3D printing to manufacture complex-shaped carbide parts or rods with intricate internal channels, potentially revolutionizing customization and small-batch production.

Intelligent Manufacturing and Quality Control: Introducing more automation and intelligent technologies into the production process to improve consistency, efficiency, and quality control levels.

Green Manufacturing and Recycling: Greater focus on environmentally friendly production processes and recycling technologies for carbide scrap to achieve sustainable development.

8. Conclusion

Tungsten carbide rods, as a critical engineering material, hold a pivotal position in modern industry due to their irreplaceable superior properties. From precision tool manufacturing to high-wear-resistant components, their applications are extensive and continually expanding. Through a deep understanding of material composition, grade selection, manufacturing processes, and application requirements, users can choose the most suitable tungsten carbide rods to maximize their performance advantages, thereby enhancing production efficiency and product quality. With ongoing advancements in materials science and manufacturing technology, the performance of tungsten carbide rods will further improve, and their application areas will become even broader, continuously contributing to technological progress across various industries.
