Tungsten Copper vs. Tungsten Nickel Alloys: Microstructure, Properties, and Applications

Both Tungsten Copper (W-Cu) and Tungsten Nickel (W-Ni) alloys belong to the high-density tungsten-based material family at HAO CARBIDE. Both rely on tungsten as their primary backbone, providing exceptional density, high melting points, and excellent thermal resistance.

However, their matrix components are fundamentally different: Tungsten Copper uses copper as an insoluble infiltration/filler phase, whereas Tungsten Nickel uses nickel as a liquid-phase bonding matrix. This fundamental difference in chemical composition leads to distinct microstructures, physical and mechanical properties, manufacturing techniques, and industrial applications.

1. Microstructural Differences: Mechanical Composite vs. Liquid-Phase Sintering

To understand the microstructural difference between W-Cu and W-Ni, consider them as two different architectural systems:

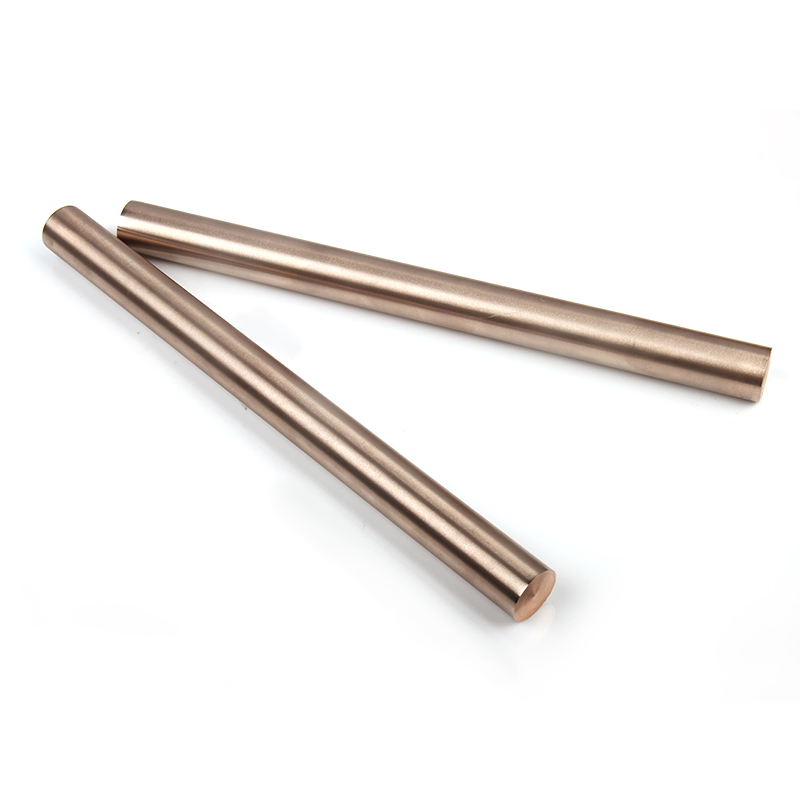

Tungsten Copper (Mechanical Pseudo-Alloy):
Think of W-Cu like bricks and mortar. Tungsten particles represent the structural bricks, and copper acts as the mortar filling the voids. Because tungsten and copper are mutually insoluble, copper does not diffuse into the tungsten lattice. After sintering and infiltration, the tungsten grains remain solid, while the copper forms a continuous, interconnected network throughout the matrix. It is a strictly physical, mechanical mixture with distinct, sharp grain boundaries.

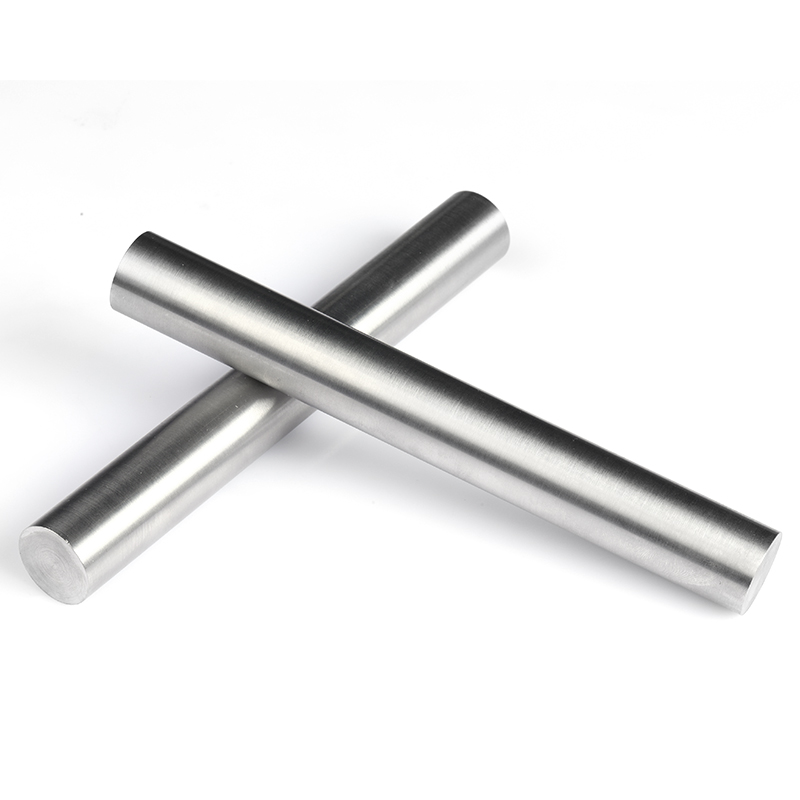

Tungsten Nickel (Liquid-Phase Sintered Alloy):
W-Ni is comparable to dissolution and precipitation. Nickel can partially dissolve tungsten. During liquid-phase sintering, tungsten particles partially dissolve into the liquid nickel phase and recrystallize, allowing the grains to coalesce. Upon cooling, the tungsten grains are tightly bound within a nickel-based matrix, creating a continuous metallurgical transition zone at the interfaces. When iron is added to form a Tungsten-Nickel-Iron (W-Ni-Fe) ternary alloy, the microstructure becomes even denser and exhibits superior toughness.

2. Property Comparison: Conductivity vs. Structural Load-Bearing

Property Comparison: Tungsten Copper vs. Tungsten Nickel Alloys

While both materials contain tungsten, W-Cu prioritizes functional transmission (thermal and electrical), whereas W-Ni focuses on structural load-bearing and mass distribution.

Tungsten Copper (W-Cu) Properties:

Thermal & Electrical Conductivity: The continuous copper network allows heat and electricity to flow freely. Its performance can be precisely tailored by altering the copper ratio: higher copper content yields superior thermal/electrical conductivity, while higher tungsten content enhances arc-erosion resistance and hardness.

Tailored Thermal Expansion (CTE): By adjusting the W-Cu ratio, the coefficient of thermal expansion can be matched to semiconductor materials (such as Si, GaAs, and GaN).

Machinability: Due to high hardness and the two-phase structural contrast, W-Cu causes rapid tool wear during turning and milling, making the machining of intricate geometries relatively costly.

Tungsten Nickel (W-Ni / WHA) Properties:

High Strength & Ductility: Nickel provides a ductile binder phase, giving W-Ni alloys significantly higher tensile strength and elongation than W-Cu.

Higher Density (17.0 – 18.8 g/cm³): W-Ni achieves greater density than W-Cu, making it ideal for concentrating maximum weight into minimal volume.

Conductivity: The electrical and thermal conductivity of W-Ni is considerably lower than that of W-Cu, as nickel is an inherently poor conductor compared to copper.

Machinability: Depending on the grade, particularly with W-Ni-Fe alloys, the material demonstrates good plasticity and can be machined using standard tooling and parameters.

3. Industrial Applications: Where to Use W-Cu vs. W-Ni

Application Comparison: Tungsten Copper vs. Tungsten Nickel Alloys

Key Applications for Tungsten Copper:

Electrical Contacts & Arcing Contacts: Ideal for high-voltage circuit breakers and vacuum interrupters where pure copper would melt under electrical arc temperatures, but tungsten prevents erosion.

EDM & Resistance Welding Electrodes: Delivers low electrode wear, high material removal rates, and excellent electrical discharge performance.

Electronic Packaging & Thermal Heat Sinks: Used as thermal mounting bases and heat dissipation plates for microprocessors and RF devices, preventing chip cracking by matching the thermal expansion rate.

Key Applications for Tungsten Nickel:

Counterweights & Ballast Weights: Indispensable in aerospace control surfaces, high-performance automotive crankshafts, and downhole drilling tools where compact mass is required.

Inertial Components: Used for gyroscopes and flywheels that demand mechanical strength and high rotational inertia.

Radiation Shielding: Heavily utilized in medical collimators, isotope containers, and nuclear shielding due to its outstanding gamma and X-ray absorption capacity.

Tungsten copper and tungsten nickel alloy comparison by HAO CARBIDE

Summary: Which Material Should You Choose?

l Choose Tungsten Copper (W-Cu) if your application requires superior electrical and thermal conductivity combined with arc-erosion resistance.

l Choose Tungsten Nickel (W-Ni / W-Ni-Fe) if your application requires maximum density, structural load capacity, and radiation protection.

At HAO CARBIDE, we supply both Tungsten Copper and Tungsten Heavy Alloys across a comprehensive range of standard and custom compositions. Backed by decades of powder metallurgy expertise, our engineering team can assist you in selecting the ideal grade for your operating conditions, providing composition optimization, rapid prototyping, and finished precision-machined components.

Contact HAO CARBIDE today to request a material consultation or RFQ.
