What is a Tungsten Alloy Crankshaft Counterweight?

A block of steel, a block of lead, and a block of tungsten alloy of the exact same size will feel significantly different in your hand. This is because of the differences in the density (specific gravity) of the materials.

For certain components, when installation space is limited but a significant amount of weight is required, material density becomes a critical factor. The design of counterweights for engine crankshafts is a classic example of this application.

The crankshaft is the key to power output in an engine or internal combustion engine. Through the crank-connecting rod mechanism, it converts the reciprocating linear motion of the pistons into continuous rotational motion, transmitting power to the gearbox and ultimately driving the vehicle or machinery. Because the mass distribution of moving parts like pistons and connecting rods is uneven, the crankshaft generates periodic inertial forces and vibrations during high-speed rotation. To ensure smooth engine operation, reduce noise, and extend service life, suitable counterweights must be configured on the crankshaft to balance the rotating mass.

High-specific-gravity tungsten alloy is considered an ideal material for crankshaft counterweights due to its high density and excellent wear resistance.

However, designing a crankshaft counterweight is far more complex than simply machining tungsten alloy into a fixed shape. Taking the custom crankshaft counterweights produced by HAO CARBIDE as an example, every product requires a dedicated design and precision machining based on the specific structure of the crankshaft, installation position, target weight, spatial dimensions, and connection methods to achieve the optimal balancing effect within a limited space.

I. What Materials Compose a Tungsten Alloy Crankshaft Counterweight?

HAO CARBIDE tungsten alloy crankshaft counterweights are components primarily made of metallic tungsten as the core raw material, with nickel and iron added as auxiliary binding materials. The overall performance is significantly influenced by the material ratio. Typically, the tungsten content ranges from 90% to 98%, and the nickel-to-iron ratio is usually 7:3 or 1:1.

Through actual production, HAO CARBIDE has found that changing the proportion of tungsten affects the performance of the counterweight according to the following patterns:

1. Density increases as tungsten content rises.

2. Hardness and strength generally increase as tungsten content rises.

3. Ductility (elongation) decreases as tungsten content rises.

II. Why Choose Tungsten Alloy Over Steel or Lead?

The choice of crankshaft counterweight material usually depends on density and the operating environment. The density of tungsten alloy is 16.5–18.5 g/cm³, which is roughly double that of ordinary steel (approx. 7.8 g/cm³). This means that for the same weight, a tungsten alloy counterweight takes up much less volume than steel, leaving more design space for other structures around the crankshaft.

Why not choose lead, which also has a high density and a lower unit price? The primary reason lies in the significant difference in mechanical properties. Lead has a density of approximately 11.34 g/cm³; while higher than steel, its hardness and strength are relatively low. In crankshaft applications that must withstand continuous rotation, vibration, and mechanical loads, lead's structural stability is insufficient. Additionally, tungsten alloy has superior high-temperature resistance, maintaining its performance even in environments with continuous heat.

III. What is the Role of Counterweights in a Rotating System?

During rotation and reciprocating motion, the weight distribution of the crankshaft must be logically configured across different sections. The position, weight, and external dimensions of the counterweights are intrinsically linked to the crankshaft design. If the weight or installation position changes, the dynamic characteristics of the entire rotating system may be altered. Therefore, tungsten alloy crankshaft counterweights are typically manufactured according to specific crankshaft models and design blueprints rather than using universal sizes.

For products customized by HAO CARBIDE, material ratios and product structures are finalized only after the customer provides information regarding the crankshaft structure, weight requirements, and installation dimensions.

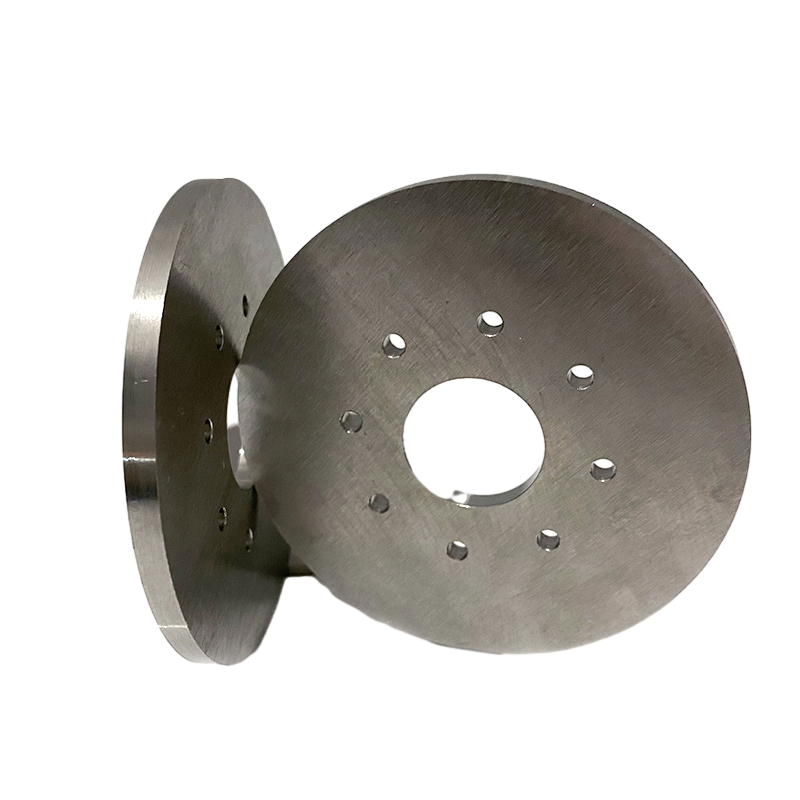

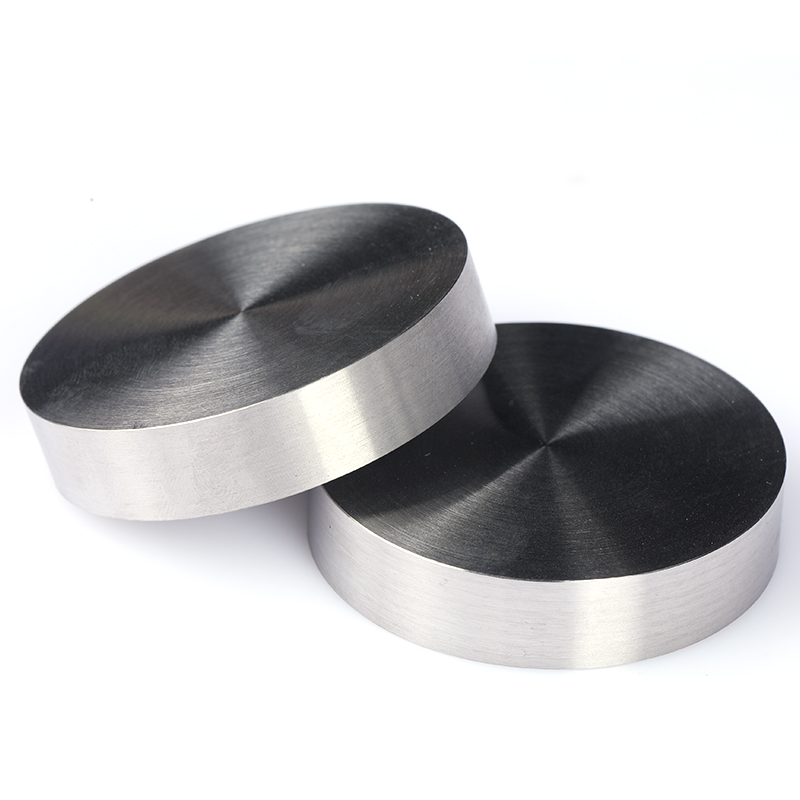

IV. What Shapes Can Tungsten Alloy Crankshaft Counterweights Take?

Crankshaft counterweights are rarely simple blocks or cylinders; they are custom parts designed to match the crankshaft structure. Common structures include:

l Arc blocks

l Sector/fan-shaped blocks

l Circular segment blocks

l Irregularly shaped blocks

l Complex structures with holes, slots, and steps.

Tungsten alloy possesses good machinability and can be processed via turning, milling, and grinding to meet the requirements of the drawings. Consequently, for non-standard counterweights, 2D engineering drawings or 3D models are essential for determining the product structure.

V. Differences Between Counterweights in Passenger Cars and High-Performance Vehicles

Passenger car engines generally need to balance fuel economy, smoothness, reliability, and manufacturing costs. Therefore, counterweight design considers the operating state across the entire speed range. In cases where installation space is sufficient and weight requirements can be met by conventional materials, steel remains a common choice due to its low cost and ease of processing.

High-performance engines typically operate at much higher RPMs. The inertial loads sustained by the crankshaft and its connected moving parts increase as speed rises. For rotating mass, the centrifugal load is proportional to the square of the angular velocity. As the rotation speed increases, the mass, position, and structural design of the counterweights require much tighter tolerances. In limited spaces, if low-density steel were used to reach the required weight, the counterweight's volume would have to increase significantly. Tungsten alloy’s high density allows it to provide the necessary mass within a much smaller volume.
