What is Tungsten Copper Alloy?

In industrial materials, some stand out for a single performance metric, while others excel through the synergy of combined properties. Tungsten Copper (W-Cu) alloy belongs to the latter. It integrates the high-temperature resistance, wear resistance, and low thermal expansion of tungsten with the excellent electrical and thermal conductivity of copper into a single composite system.

Since tungsten and copper are almost completely immiscible in a solid state and do not form intermetallic compounds, tungsten copper alloy cannot be produced using traditional melting methods. Instead, it is manufactured via a powder metallurgy infiltration process. This involves powder preparation and blending, pressing into green compacts, sintering the tungsten skeleton, infiltrating with liquid copper, and finally, precision machining.

Copper infiltration is the critical step. Imagine the pre-formed tungsten skeleton as a structure with microscopic channels; once the molten copper flows into these pores, it forms a composite microstructure with the tungsten. During production, HAO CARBIDE strictly controls parameters such as tungsten powder particle size and purity, sintering temperature, and infiltration duration to minimize residual porosity and enhance the uniformity of the alloy structure.

I. Distinctive Features of Tungsten Copper vs. Tungsten Nickel

Both tungsten copper and tungsten nickel alloys are tungsten-based composites, but their design philosophies differ. Simply put, tungsten copper alloy places greater emphasis on the comprehensive balance between electrical conductivity, thermal conductivity, low thermal expansion, and heat/wear resistance.

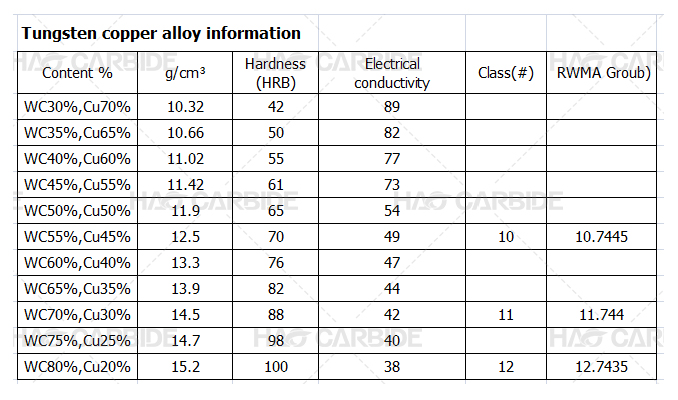

With nearly 30 years of experience in producing tungsten copper alloys, HAO CARBIDE has observed that specific performance indicators are not fixed. They are closely related to the tungsten-to-copper ratio, raw material characteristics, porosity, manufacturing processes, and subsequent processing states. Generally, as the tungsten content increases, the density, hardness, and tensile strength of the alloy increase; as the copper content increases, the electrical and thermal conductivity improve.

II. Applications of Tungsten Copper Alloy

1. EDM Electrodes
In Electrical Discharge Machining (EDM), the electrode material significantly impacts processing precision and efficiency. While pure copper electrodes offer excellent conductivity and are easy to machine, they tend to soften and wear rapidly under the high temperatures of continuous discharge. Tungsten copper electrodes maintain excellent conductivity while adding the advantages of high-temperature and ablation resistance. The tungsten phase acts as a heat-resistant skeleton, slowing down ablation loss during long-duration discharge tasks and better maintaining the electrode's original shape.

2. Resistance Welding Electrodes
Tungsten copper alloys are frequently used for spot welding and projection welding electrodes. During welding, electrodes repeatedly contact workpieces and must withstand instantaneous high temperatures—a constant "trial by fire." The tungsten phase prevents the electrode tip from softening, deforming, or wearing, ensuring stable performance during continuous welding operations.

3. Electrical Contacts
In electrical components such as switch contacts and circuit breakers, materials must repeatedly make and break currents. Each cycle can involve electric arcs and instantaneous high temperatures. Due to its superior electrical and mechanical properties, tungsten copper contacts can withstand the wear and tear caused by the frequent opening and closing of high-voltage switches.

4. Heat Sinks
In microelectronic devices, heat sinks and thermal spreaders are responsible for dissipating heat from components. Chips generate continuous heat during operation; excessive temperatures can compromise device performance. Tungsten copper alloy possesses high thermal conductivity and a low coefficient of thermal expansion (CTE), which reduces dimensional changes caused by temperature fluctuations. It is ideal for heat dissipation in high-power electronic components.

5. Mold and Tooling Components
In mold processing, high-temperature fixtures and wear-resistant inserts often come into contact with hot workpieces and undergo repeated friction. If the material lacks heat or wear resistance, the contact surfaces may deform or wear out over time. Tungsten copper’s combination of heat resistance, wear resistance, and thermal conductivity reduces heat accumulation and frictional loss, making it suitable for short-term high-temperature tooling components.

III. Product Forms and Machining

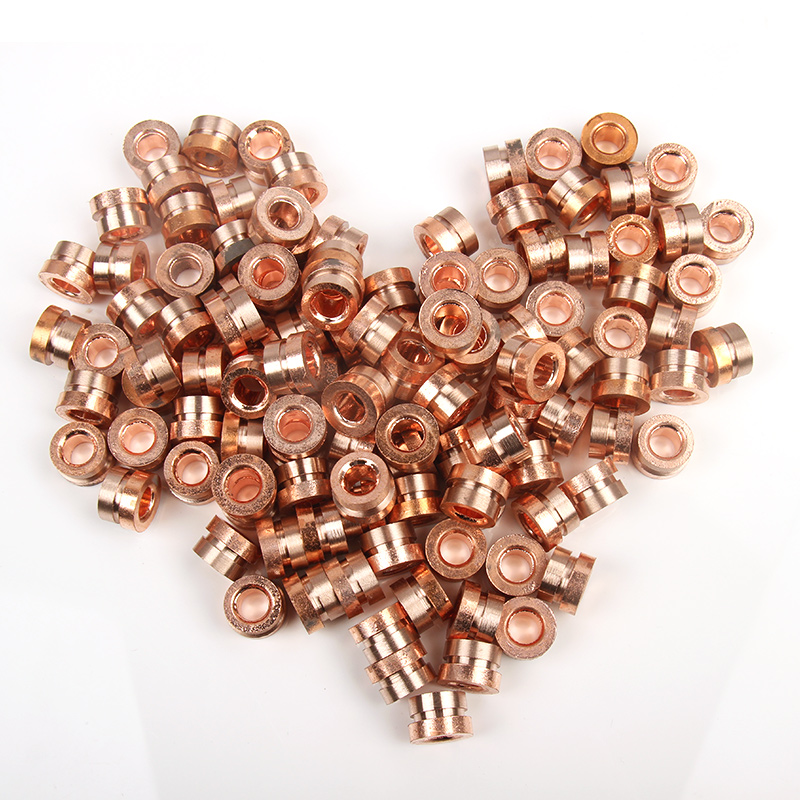

Based on actual customer requirements, HAO CARBIDE can process tungsten copper alloys into rods, plates, blocks, contacts, electrodes, heat dissipation components, and other custom-shaped structural parts.

Because tungsten copper contains both high-hardness tungsten and relatively soft copper, machining it is not as straightforward as machining pure copper. This is especially true for alloys with higher tungsten content, which are more wear-resistant and can lead to rapid tool wear. Typically, tungsten carbide tools are used, with optimized cutting speeds and feed rates. For precision machining of tungsten copper electrodes, coolant is often used to dissipate heat and prevent copper chips from adhering to the tool. For complex structures or small-scale electrodes, CNC (Computer Numerical Control) machining is utilized for high-precision forming.
