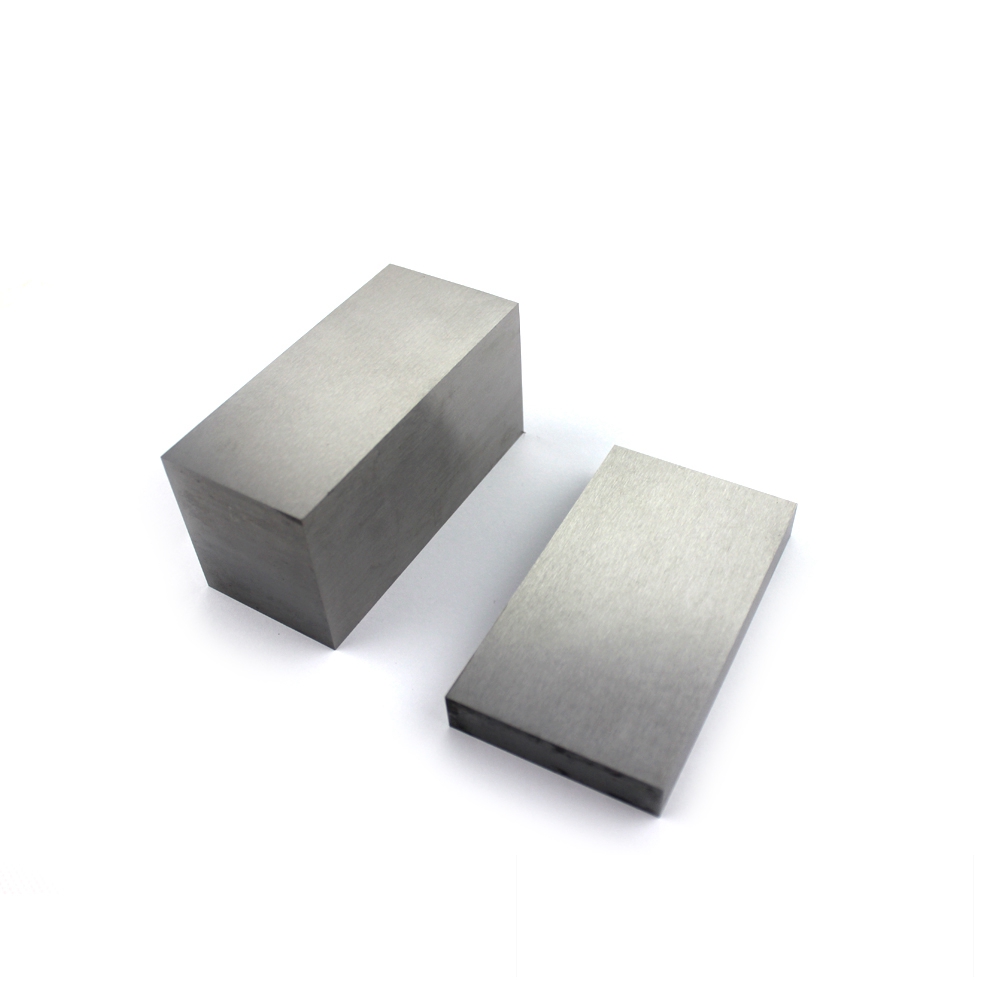

Cemented carbide cube

Cemented carbide cube

【Item】Tungsten carbide plates

【Grade】JZ2T (k10~k20)

【Specification】According to customer requirement

【Brand】JinBoShi

【Country of Origin】ZhuZhou,China

【Usage】Machining of refractory alloys, stainless steel and high manganese steel,etc.

Email this page Submit your Inquiry
Product info


  • 1. For punching molds. It is suitable for the production of punching copper, aluminum, stainless steel, cold rolled sheet, EI film, Q195, SPCC, silicon steel, hardware, standard parts, upper and lower punch and other high-speed mold and multi-station into the mold.
  • 2. For the production of wear-resistant tools. Such as woodworking industry tools, plastic crushing tools.
  • 3. For the production of high temperature parts, wear parts, anti-shielding components. Such as machine guide, ATM anti-theft board.
  • 4. Used in the production of chemical industry corrosion-resistant parts.
  • 5. Radiation Anticorrosive Materials for Medical Devices.
  • 6. Different purposes of the performance of cemented carbide sheet is not consistent, should be used in accordance with the appropriate use of appropriate materials carbide plates.




Tungsten Carbide Plates Tags
Carbide Rod Hs Code, Carbide Rod Korea, Tungsten Carbide Rod Ebay,
Product Dispaly
Specifications

Specificataon List of Carbide Strips

Type L W T Type L W T

140*W*T

140 6 1.5-6.0 230*W*T 230 8 2.0-6.0
140*W*T 140 8 1.5-6.0 230*W*T 230 10 2.0-6.0
140*W*T 140 10 1.5-6.0 230*W*T 230 12 2.0-6.0
140*W*T 140 12 1.5-6.0 230*W*T 230 16 2.0-6.0
140*W*T 140 14 1.5-6.0 230*W*T 230 18 2.0-6.0
140*W*T 140 16 1.5-6.0 230*W*T 230 20 2.0-6.0
140*W*T 140 18 1.5-6.0 230*W*T 230 22 2.0-6.0
140*W*T 140 20 2.0-6.0 230*W*T 230 25 2.5-6.0
140*W*T 140 22 2.0-6.0 230*W*T 230 28 2.5-6.0
140*W*T 140 25 2.0-6.0 230*W*T 230 30 2.5-6.0
165*W*T 165 6 1.5-6.0 230*W*T 230 32 2.5-6.0
165*W*T 165 8 1.5-6.0 230*W*T 230 40 2.5-6.0
165*W*T 165 10 1.5-6.0 320*W*T 320 8 2.0-6.0
165*W*T 165 12 1.5-6.0 320*W*T 320 10 2.0-6.0
165*W*T 165 14 1.5-6.0 320*W*T 320 12 2.0-6.0
165*W*T 165 16 1.5-6.0 320*W*T 320 14 2.0-6.0
165*W*T 165 18 1.5-6.0 320*W*T 320 16 2.0-6.0
165*W*T 165 20 2.0-6.0 320*W*T 320 18 2.0-6.0
165*W*T 165 22 2.0-6.0 320*W*T 320 20 2.0-6.0
165*W*T 165 24 2.0-6.0 320*W*T 320 22 2.0-6.0
165*W*T 165 25 2.0-6.0 320*W*T 320 24 2.0-6.0
165*W*T 165 26 2.0-6.0 320*W*T 320 25 2.5-6.0
165*W*T 165 28 2.0-6.0 320*W*T 320 28 2.5-6.0
165*W*T 165 30 2.5-6.0 320*W*T 320 30 2.5-6.0
165*W*T 165 32 2.5-6.0 320*W*T 320 32 2.5-6.0
165*W*T 165 35 2.5-6.0 320*W*T 320 35 2.5-6.0
165*W*T 165 40 2.5-6.0 320*W*T 320 40 2.5-6.0


Properties and applications of tunqsten carbide strips

GRADE JZ6 JZ6A JZ8 JZ2T JZ10.2
ISO CODE K10 K10 K20 K10~K20 K20~K30
CO (%) 6 6 8 15 10
WC (%) 94 94 92 85 90
DENSITY (G/cm3) 14.9 14.9 14.7 14.5 14.45
T.R.S (Mpa) 2150 1850 2400 2350 2400
Hardness (HRA) 90 92 89.5 92 91.5


GRADE Properties and Applications
JZ6 Good wear resistance, used for hard wood, used for processing original wood, aluminum setion bar, brass rod and cast iron.
JZ6A Has wear resistance higher than YG6, used for processing hard wood, original wood, aluminum setion bar, brass rod and cast iron.
JZ8 Used for punch dies, stamping dies and wear resistance parts.
JZ2T Fine carbide, high wear resistance, high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc.
JZ10.2 It suitable for making low and medium speed electronic class level dies, also applying in punching copper or aluminum strip.
