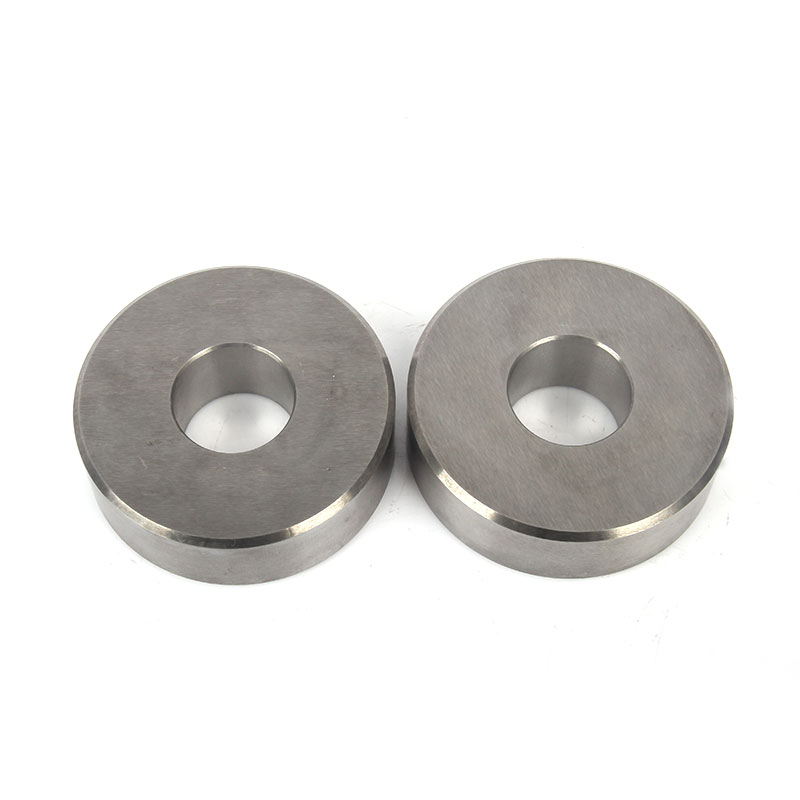

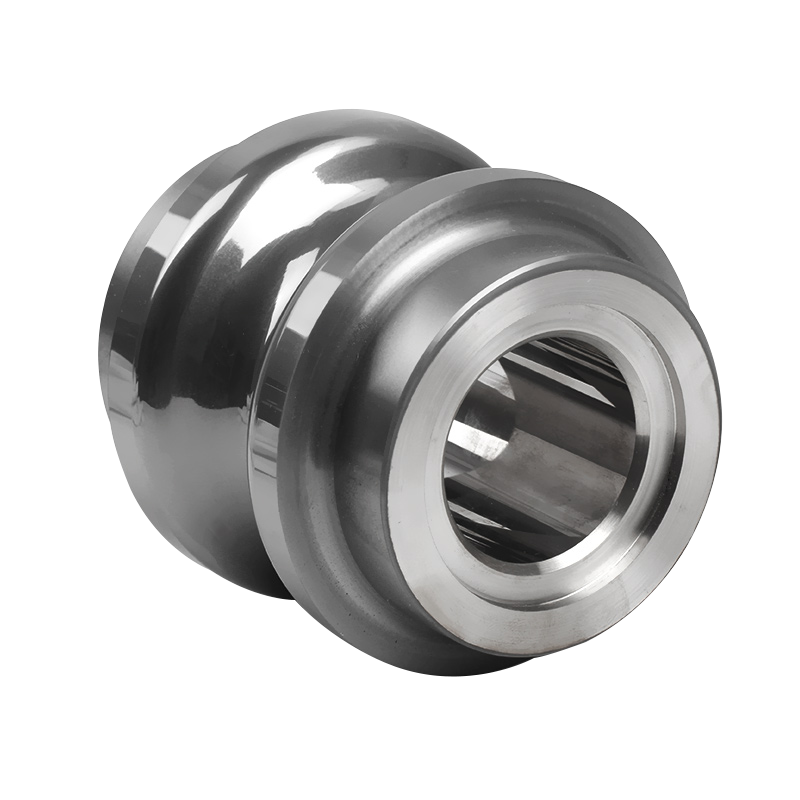

High-Precision Tungsten Carbide Guide Dies and Wire Eyelets

Performance Characteristics

l Low Friction Coefficient: The internal bore is polished to a mirror finish, ensuring that wire passes through with minimal resistance, preventing surface scratches or "galling."

l Extreme Wear Resistance: Manufactured from 100% virgin tungsten carbide, these dies offer a service life significantly longer than hardened steel or ceramic guides.

l High Hardness & Stability: Maintains excellent dimensional stability and hardness even under high-speed wire travel and continuous friction.

l Self-Lubricating Effect: The dense molecular structure of the carbide, combined with ultra-smooth polishing, provides a natural "slippery" surface that reduces heat buildup.

l Corrosion Resistance: Resistant to various lubricants and chemical coolants used in wire processing lines.

Email this page Submit your Inquiry

Product info

Technical Parameters

Parameter: Specifications

Material Grade: Typically YG6, YG8, or Fine-grain YL10.2

Hardness: 89.0 - 92.5 HRA

Surface Roughness (Bore)： Ra 0.05μm - Ra 0.1μm (Mirror Polished)

Concentricity: ≤ 0.005mm

Bore Diameter Range： Customizable from 0.1mm to 50mm+

Structure : Type Solid Carbide or Steel Cased (Inserted)

Detailed Description

Our guide dies are produced using HIP (Hot Isostatic Pressing) sintering technology, which eliminates internal microporosity and ensures a perfectly uniform structure.

Internal Geometry: The entrance and exit of the bore are engineered with smooth radii (R-angles) to guide the wire into the die without any sharp contact points.

Customization: We offer various shapes, including round, oval, rectangular, and custom-grooved guides based on specific machinery requirements.
