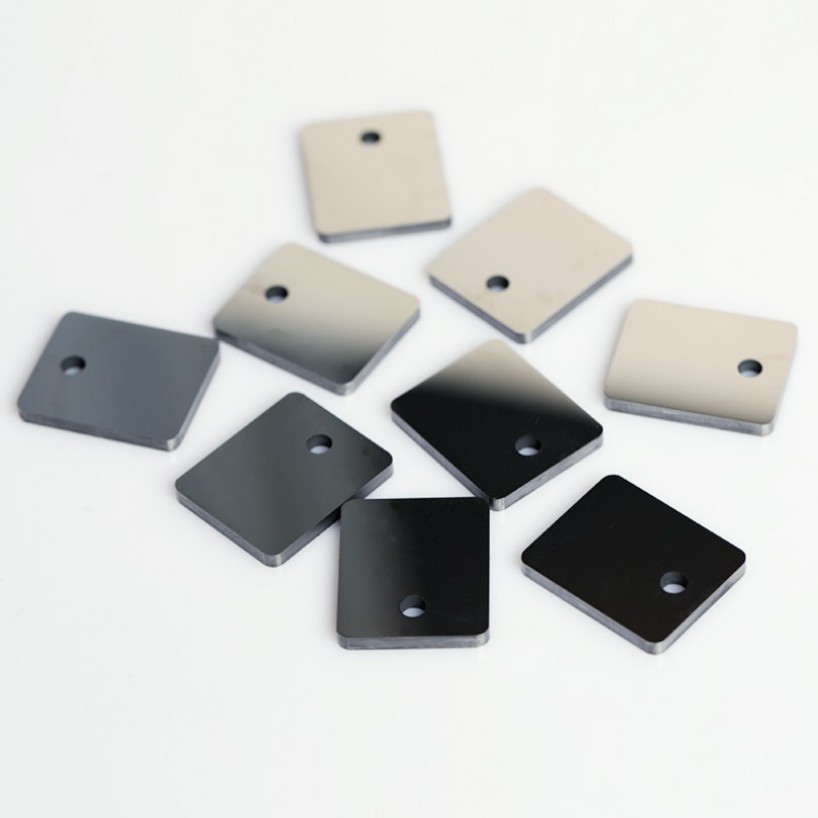

Tungsten Carbide Denibber

1. What is it?

Definition: A Tungsten Carbide Denibber is a high-performance industrial tool specifically designed for removing burrs, flashes, and slag from the surface of metallic or non-metallic workpieces. Its core component, the blade, is made of tungsten carbide.

English Terms: Tungsten Carbide Denibber, Deburring Tool, Scraper.

Application Process: This process is known as "Deburring" or "Denibbing."

2. Why Tungsten Carbide?

Tungsten carbide is a composite material composed of hard tungsten carbide particles bonded together by a metal matrix, typically cobalt (Co). It is the ideal material of choice for blades due to its unparalleled advantages:

l Extreme Hardness: With a hardness second only to diamond, it can easily cut a wide range of metals, including cast iron, steel, and aluminum alloys.

l Excellent Wear Resistance: During high-frequency friction and cutting, the tool wears down very slowly, resulting in a service life that is tens or even hundreds of times longer than that of conventional High-Speed Steel (HSS) tools.

l High-Temperature Resistance: Even under the high temperatures generated during the deburring process, tungsten carbide maintains its hardness and cutting performance.

l High Efficiency and Consistency: Thanks to its long tool life and low replacement frequency, it ensures the continuity and stability of automated production lines (e.g., those using robotic deburring), leading to more consistent final product quality.

3. Applications

It is widely used in industries that require high precision and quality surface finishing:

Automotive Industry: For the removal of parting lines and flashes from castings such as engine blocks, cylinder heads, transmission housings, and chassis components.

Foundry Industry: Cleaning burrs from various cast iron and cast aluminum parts.

Aerospace: Fine finishing of high-precision components.

Machining: Removal of micro-burrs generated after machining processes.

II. Shark Blade

1. What is it?

Definition: A "Shark Blade" is generally not a standard industry term but rather a descriptive trade name or a type of blade with a specific design. It refers to a tungsten carbide denibbing blade that features a special tooth profile or edge design.

Design Inspiration: The name is inspired by its appearance or function, which resembles a shark's tooth—sharp, robust, and with a powerful and aggressive cutting action.

2. Design Features

Compared to standard flat or round-edged scrapers, a "Shark Blade" typically has one or more of the following features:

l Serrated Edge: The cutting edge is not a smooth, straight line but is instead lined with multiple small teeth. This design improves cutting efficiency, especially when dealing with harder or larger burrs, allowing it to "bite" into and remove excess material more quickly.

l Special Geometry: The blade's geometry (including its angles, rake, and clearance) is specially optimized to provide better cutting performance on specific materials, such as ductile aluminum alloys, and to prevent "slipping."

l More Aggressive Cutting Action: It is designed from the ground up for rapid and aggressive material removal, making it suitable for applications with heavy deburring tasks and extremely high-efficiency requirements.

3. Advantages & Use Cases

Advantages:

l Extremely high removal efficiency: Especially effective for removing large and tough burrs and flashes.

l Powerful cutting force: Capable of handling stubborn burrs that are difficult for traditional blades to process.

l Reduced cycle time: Allows for faster robot speeds on automated production lines.

Best for:

l Heavy-duty deburring tasks, such as on large cast iron parting lines.

l Production lines with high-efficiency demands that require minimizing the cycle time per workpiece.

l Deburring specific, difficult-to-machine materials.

Summary

A Tungsten Carbide Denibber is a broad category, referring to the general class of deburring tools made from tungsten carbide, emphasizing the ultra-long life and high stability derived from its material.

A Shark Blade is a specific design within this category. Building upon the tungsten carbide material, it achieves a more aggressive cutting action and higher deburring efficiency through an optimized blade shape (e.g., a serrated edge).

To put it simply: All "Shark Blades" are a type of "Tungsten Carbide Denibber," but not all tungsten carbide denibbers feature the special tooth design of a "Shark Blade." When selecting a tool, the choice between a standard blade and a high-performance specialty blade like the "Shark Blade" should be based on the specific workpiece material, the size of the burrs, and the required production efficiency.
