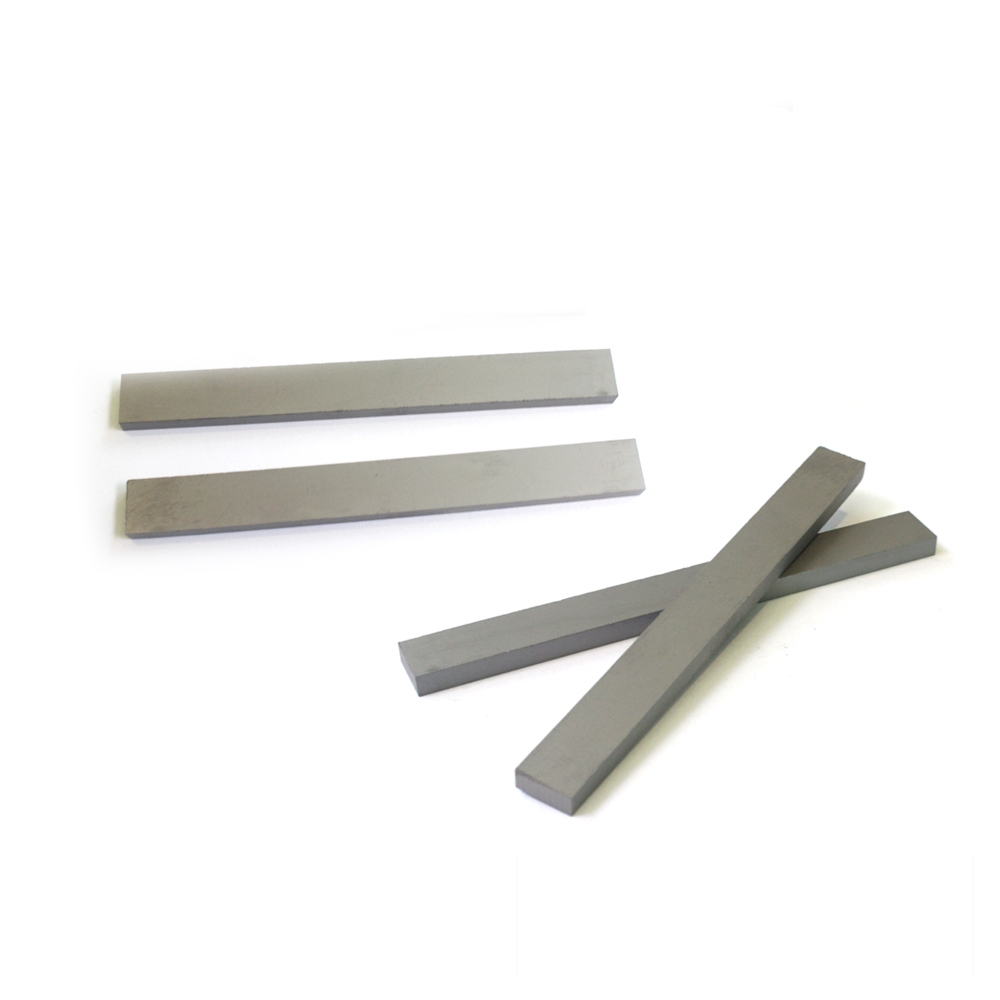

250X16X2mm rectangular carbide bars

【Item】Tungsten carbide bars and strips

【Grade】JZ2T (k10~K20)

【Specification】According to customer requirement

【Brand】JinBoShi

【Country of Origin】ZhuZhou, China

【Usage】wood cutters / hard wood cutters, plastic and tobacco cutting

Email this page Submit your Inquiry

Product info

1. Hardness can reach to HRA 94, TRS ≥4000 N/mm²

2. The sizes of the strips can be customized as your requirements.

3. Blank strips and polished strips can be chosen.

4. The minimum size is φd 0.25mm and the tolerance can reach to ±0.01mm.

5. Common diameter from 1mm---30mm

6. length tolerance: +0.3--1.8mm

Product features:

1.Our cemented carbide rods use dry isostatic pressing machine and low press sintering technology,
which showed uniform distribution of cobalt magnetic, high hardness and bending strength.

2. Inner structure are more compact and well distributed in metallographic test.

3. It can reach a mirror effect surface after accurate grinding.

Tungsten Carbide Bars And Strips Tags

Glock 17 Gen 5 Tungsten Guide Rod, Ground Carbide Rods, Hacksaw Carbide Cutting Rod,

Product Dispaly

Specifications

Specificataon List of Carbide Strips

Type	L	W	T		Type	L	W	T
140*W*T	140	6	1.5-6.0		230*W*T	230	8	2.0-6.0
140*W*T	140	8	1.5-6.0		230*W*T	230	10	2.0-6.0
140*W*T	140	10	1.5-6.0		230*W*T	230	12	2.0-6.0
140*W*T	140	12	1.5-6.0		230*W*T	230	16	2.0-6.0
140*W*T	140	14	1.5-6.0		230*W*T	230	18	2.0-6.0
140*W*T	140	16	1.5-6.0		230*W*T	230	20	2.0-6.0
140*W*T	140	18	1.5-6.0		230*W*T	230	22	2.0-6.0
140*W*T	140	20	2.0-6.0		230*W*T	230	25	2.5-6.0
140*W*T	140	22	2.0-6.0		230*W*T	230	28	2.5-6.0
140*W*T	140	25	2.0-6.0		230*W*T	230	30	2.5-6.0
165*W*T	165	6	1.5-6.0		230*W*T	230	32	2.5-6.0
165*W*T	165	8	1.5-6.0		230*W*T	230	40	2.5-6.0
165*W*T	165	10	1.5-6.0		320*W*T	320	8	2.0-6.0
165*W*T	165	12	1.5-6.0		320*W*T	320	10	2.0-6.0
165*W*T	165	14	1.5-6.0		320*W*T	320	12	2.0-6.0
165*W*T	165	16	1.5-6.0		320*W*T	320	14	2.0-6.0
165*W*T	165	18	1.5-6.0		320*W*T	320	16	2.0-6.0
165*W*T	165	20	2.0-6.0		320*W*T	320	18	2.0-6.0
165*W*T	165	22	2.0-6.0		320*W*T	320	20	2.0-6.0
165*W*T	165	24	2.0-6.0		320*W*T	320	22	2.0-6.0
165*W*T	165	25	2.0-6.0		320*W*T	320	24	2.0-6.0
165*W*T	165	26	2.0-6.0		320*W*T	320	25	2.5-6.0
165*W*T	165	28	2.0-6.0		320*W*T	320	28	2.5-6.0
165*W*T	165	30	2.5-6.0		320*W*T	320	30	2.5-6.0
165*W*T	165	32	2.5-6.0		320*W*T	320	32	2.5-6.0
165*W*T	165	35	2.5-6.0		320*W*T	320	35	2.5-6.0
165*W*T	165	40	2.5-6.0		320*W*T	320	40	2.5-6.0

Properties and applications of tunqsten carbide strips

GRADE	JZ6	JZ6A	JZ8	JZ2T	JZ10.2
ISO CODE	K10	K10	K20	K10~K20	K20~K30
CO (%)	6	6	8	15	10
WC (%)	94	94	92	85	90
DENSITY (G/cm3)	14.9	14.9	14.7	14.5	14.45
T.R.S (Mpa)	2150	1850	2400	2350	2400
Hardness (HRA)	90	92	89.5	92	91.5

GRADE	Properties and Applications
JZ6	Good wear resistance, used for hard wood, used for processing original wood, aluminum setion bar, brass rod and cast iron.
JZ6A	Has wear resistance higher than YG6, used for processing hard wood, original wood, aluminum setion bar, brass rod and cast iron.
JZ8	Used for punch dies, stamping dies and wear resistance parts.
JZ2T	Fine carbide, high wear resistance, high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc.
JZ10.2	It suitable for making low and medium speed electronic class level dies, also applying in punching copper or aluminum strip.
