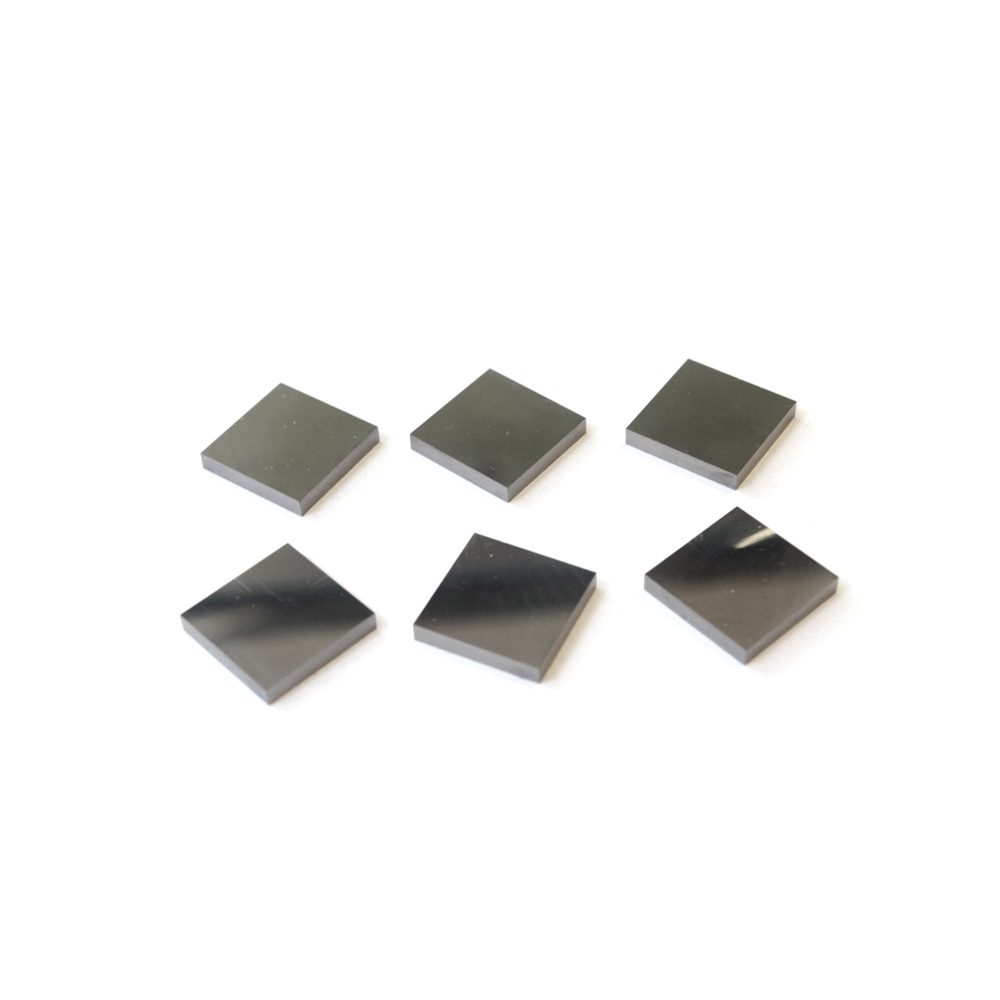

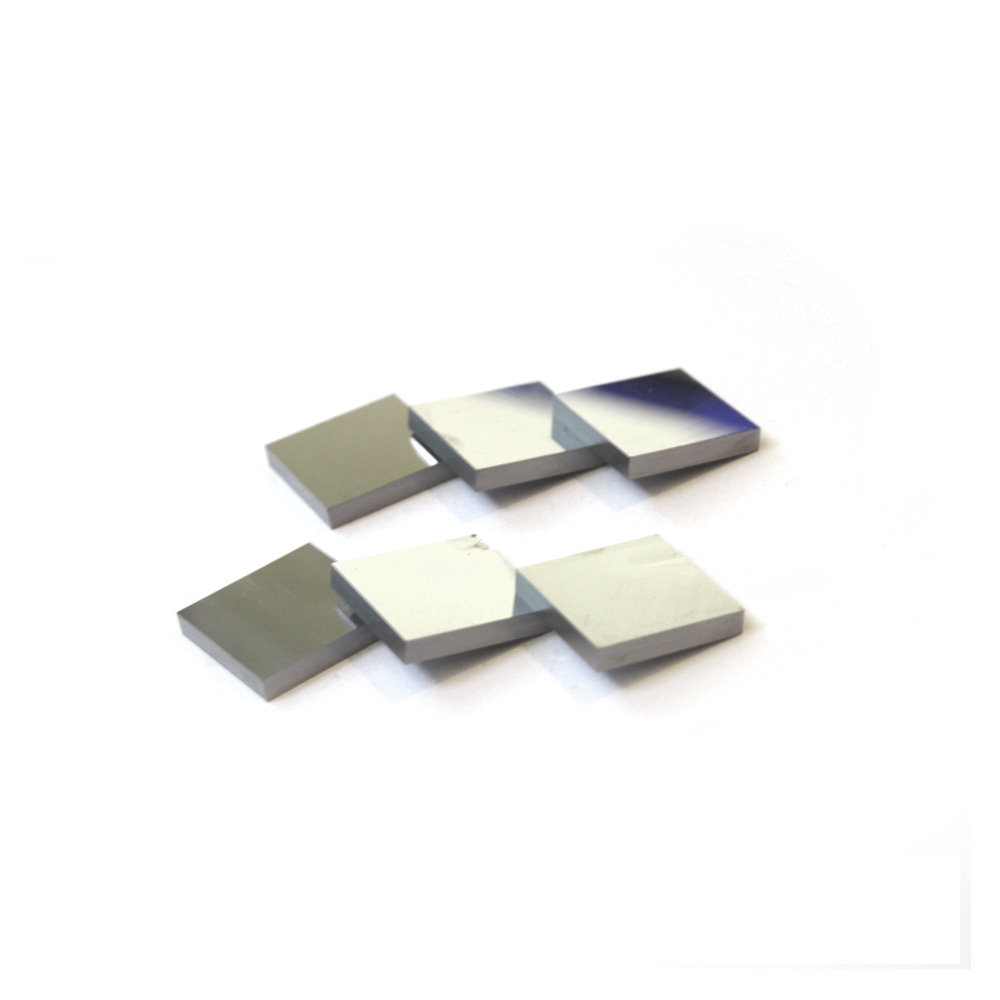

High polished tungsten carbide plates

【Item】Rectangular carbide bar

【Grade】JZ2T (k10~k20)

【Specification】According to customer requirement

【Brand】JinBoShi

【Country of Origin】ZhuZhou, China

【Usage】wood cutters / hard wood cutters, plastic and tobacco cutting

Email this page Submit your Inquiry

Product info

1. Hardness can reach to HRA 94, TRS ≥4000 N/mm²

2. The sizes of the strips can be customized as your requirements.

3. Blank strips and polished strips can be chosen.

4. The minimum size is φd 0.25mm and the tolerance can reach to ±0.01mm.

5. Common diameter from 1mm---30mm

6. length tolerance: +0.3--1.8mm

Product features:

1.Our cemented carbide rods use dry isostatic pressing machine and low press sintering technology,
which showed uniform distribution of cobalt magnetic, high hardness and bending strength.

2. Inner structure are more compact and well distributed in metallographic test.

3. It can reach a mirror effect surface after accurate grinding.

Tungsten Carbide Plates Tags

Carbide Ceramic Rod, Jual Carbide Rod, Vanadium Carbide Rod,

Product Dispaly

Specifications

Specificataon List of Carbide tiles

Properties and applications of tunqsten carbide strips

GRADE	JZ6	JZ6A	JZ8	JZ2T	JZ10.2
ISO CODE	K10	K10	K20	K10~K20	K20~K30
CO (%)	6	6	8	15	10
WC (%)	94	94	92	85	90
DENSITY (G/cm3)	14.9	14.9	14.7	14.5	14.45
T.R.S (Mpa)	2150	1850	2400	2350	2400
Hardness (HRA)	90	92	89.5	92	91.5

GRADE	Properties and Applications
JZ6	Good wear resistance, used for hard wood, used for processing original wood, aluminum setion bar, brass rod and cast iron.
JZ6A	Has wear resistance higher than YG6, used for processing hard wood, original wood, aluminum setion bar, brass rod and cast iron.
JZ8	Used for punch dies, stamping dies and wear resistance parts.
JZ2T	Fine carbide, high wear resistance, high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc.
JZ10.2	It suitable for making low and medium speed electronic class level dies, also applying in punching copper or aluminum strip.
