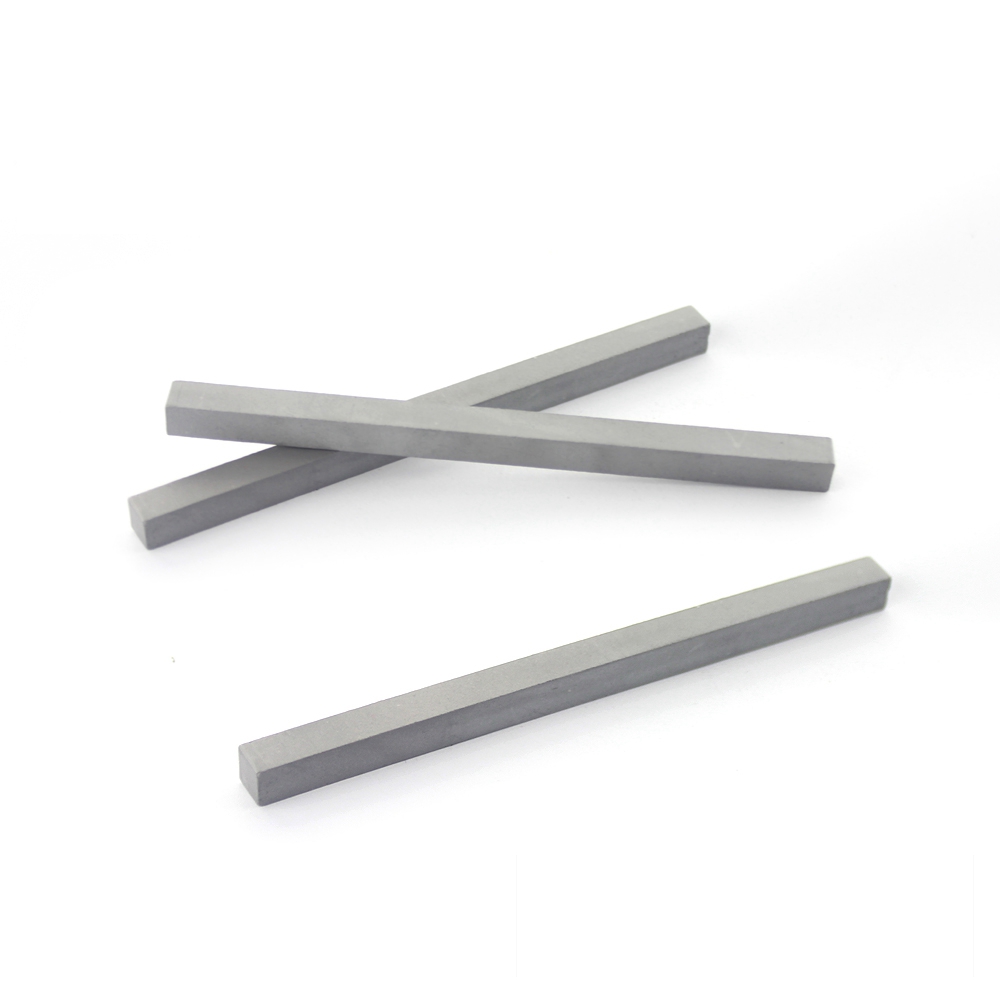

Super hard wear resistant carbide strip

Super hard wear resistant carbide strip

【Item】Tungsten carbide bars and strips

【Grade】JZ8 (k20)

【Specification】According to customer requirement

【Brand】JinBoShi

【Country of Origin】ZhuZhou, China

【Usage】wood cutters / hard wood cutters, plastic and tobacco cutting

Email this page Submit your Inquiry
Product info


1. Hardness can reach to HRA 94, TRS ≥4000 N/mm²

2. The sizes of the strips can be customized as your requirements.

3. Blank strips and polished strips can be chosen.

4. The minimum size is φd 0.25mm and the tolerance can reach to ±0.01mm.

5. Common diameter from 1mm---30mm

6. length tolerance: +0.3--1.8mm

Product features:

1.Our cemented carbide rods use dry isostatic pressing machine and low press sintering technology,
which showed uniform distribution of cobalt magnetic, high hardness and bending strength.

2. Inner structure are more compact and well distributed in metallographic test.

3. It can reach a mirror effect surface after accurate grinding.




Tungsten Carbide Bars And Strips Tags
Carbide Rod Blanks, Rod Tungsten 0.660, Tungsten Rods Uk,
Product Dispaly
Specifications

Specificataon List of Carbide Strips

Type L W T Type L W T

140*W*T

140 6 1.5-6.0 230*W*T 230 8 2.0-6.0
140*W*T 140 8 1.5-6.0 230*W*T 230 10 2.0-6.0
140*W*T 140 10 1.5-6.0 230*W*T 230 12 2.0-6.0
140*W*T 140 12 1.5-6.0 230*W*T 230 16 2.0-6.0
140*W*T 140 14 1.5-6.0 230*W*T 230 18 2.0-6.0
140*W*T 140 16 1.5-6.0 230*W*T 230 20 2.0-6.0
140*W*T 140 18 1.5-6.0 230*W*T 230 22 2.0-6.0
140*W*T 140 20 2.0-6.0 230*W*T 230 25 2.5-6.0
140*W*T 140 22 2.0-6.0 230*W*T 230 28 2.5-6.0
140*W*T 140 25 2.0-6.0 230*W*T 230 30 2.5-6.0
165*W*T 165 6 1.5-6.0 230*W*T 230 32 2.5-6.0
165*W*T 165 8 1.5-6.0 230*W*T 230 40 2.5-6.0
165*W*T 165 10 1.5-6.0 320*W*T 320 8 2.0-6.0
165*W*T 165 12 1.5-6.0 320*W*T 320 10 2.0-6.0
165*W*T 165 14 1.5-6.0 320*W*T 320 12 2.0-6.0
165*W*T 165 16 1.5-6.0 320*W*T 320 14 2.0-6.0
165*W*T 165 18 1.5-6.0 320*W*T 320 16 2.0-6.0
165*W*T 165 20 2.0-6.0 320*W*T 320 18 2.0-6.0
165*W*T 165 22 2.0-6.0 320*W*T 320 20 2.0-6.0
165*W*T 165 24 2.0-6.0 320*W*T 320 22 2.0-6.0
165*W*T 165 25 2.0-6.0 320*W*T 320 24 2.0-6.0
165*W*T 165 26 2.0-6.0 320*W*T 320 25 2.5-6.0
165*W*T 165 28 2.0-6.0 320*W*T 320 28 2.5-6.0
165*W*T 165 30 2.5-6.0 320*W*T 320 30 2.5-6.0
165*W*T 165 32 2.5-6.0 320*W*T 320 32 2.5-6.0
165*W*T 165 35 2.5-6.0 320*W*T 320 35 2.5-6.0
165*W*T 165 40 2.5-6.0 320*W*T 320 40 2.5-6.0


Properties and applications of tunqsten carbide strips

GRADE JZ6 JZ6A JZ8 JZ2T JZ10.2
ISO CODE K10 K10 K20 K10~K20 K20~K30
CO (%) 6 6 8 15 10
WC (%) 94 94 92 85 90
DENSITY (G/cm3) 14.9 14.9 14.7 14.5 14.45
T.R.S (Mpa) 2150 1850 2400 2350 2400
Hardness (HRA) 90 92 89.5 92 91.5


GRADE Properties and Applications
JZ6 Good wear resistance, used for hard wood, used for processing original wood, aluminum setion bar, brass rod and cast iron.
JZ6A Has wear resistance higher than YG6, used for processing hard wood, original wood, aluminum setion bar, brass rod and cast iron.
JZ8 Used for punch dies, stamping dies and wear resistance parts.
JZ2T Fine carbide, high wear resistance, high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc.
JZ10.2 It suitable for making low and medium speed electronic class level dies, also applying in punching copper or aluminum strip.
