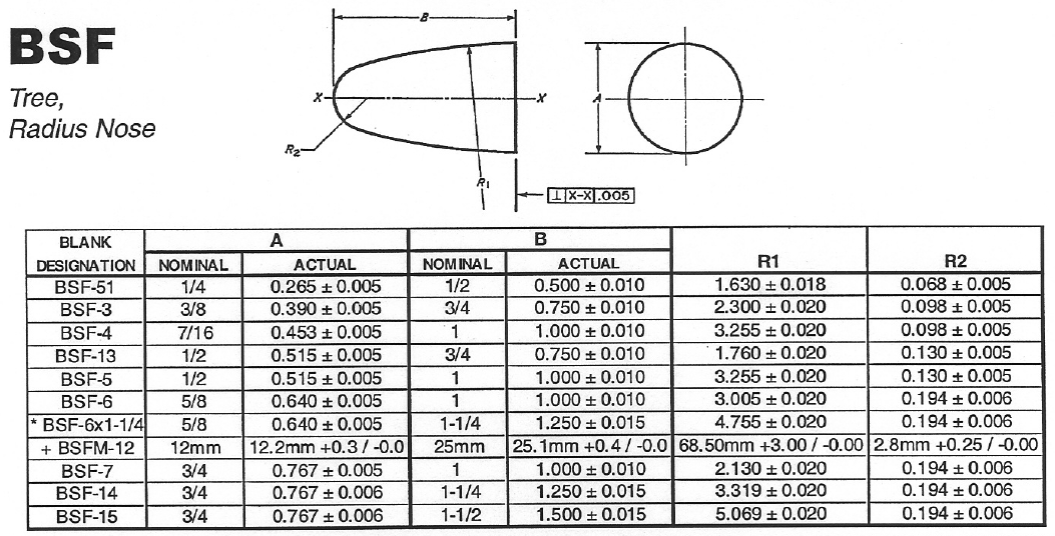

Tungsten carbide rotary burrs blank BSF Type

Tungsten carbide rotary burrs blank BSF Type

【Item】Tungsten carbide rotary burrs blank BSF Type

【Grade】JZ10S (k30)

【Specification】According to customer requirement

【Brand】HAO Carbide

【Country of Origin】ZhuZhou,China

【Usage】To make tungsten cabride burr

E-mail This Page Submit Your Inquiry

Product info

Tungsten carbide rotary burrs blank also names carbide rotary burrs, tungsten carbide burs, are hanbd held cutting tools etc. It can be used on a wide range of pneumatic, electric and flexible drive tools such as high speed machines to cut most  diverse types of material.

HAO Carbide factory supply Tungsten carbide rotary burrs blank BSF Type, BSF type, BSE type, BSD tye etc. Cutomized products also acceptable.

Tungsten Carbide Burr Blank Tags

Carbide Rod Canada, Tungsten Carbide 2mm Rod, Tungsten Rods Diameter,

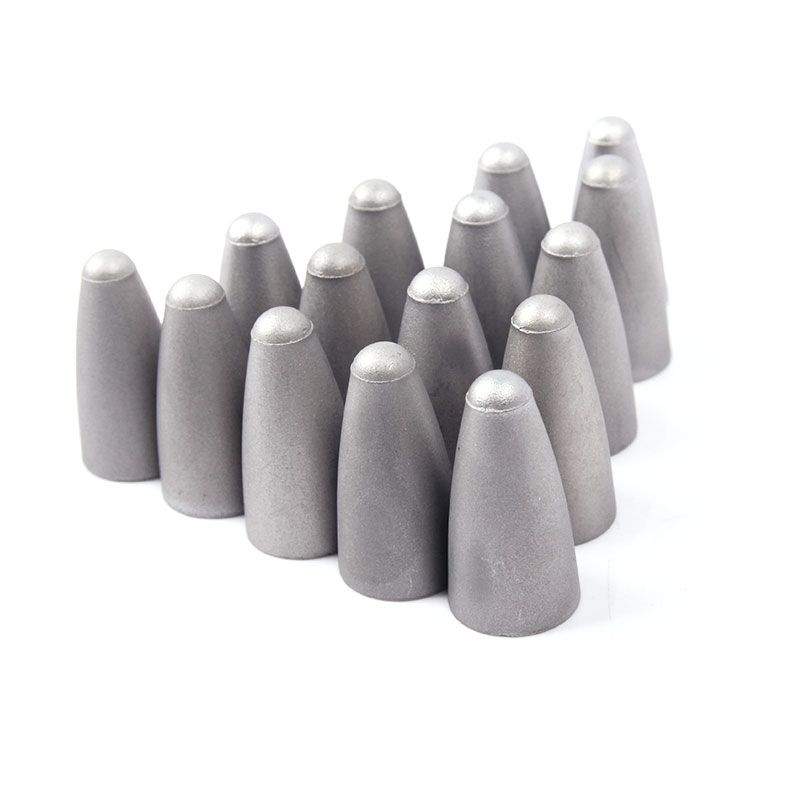

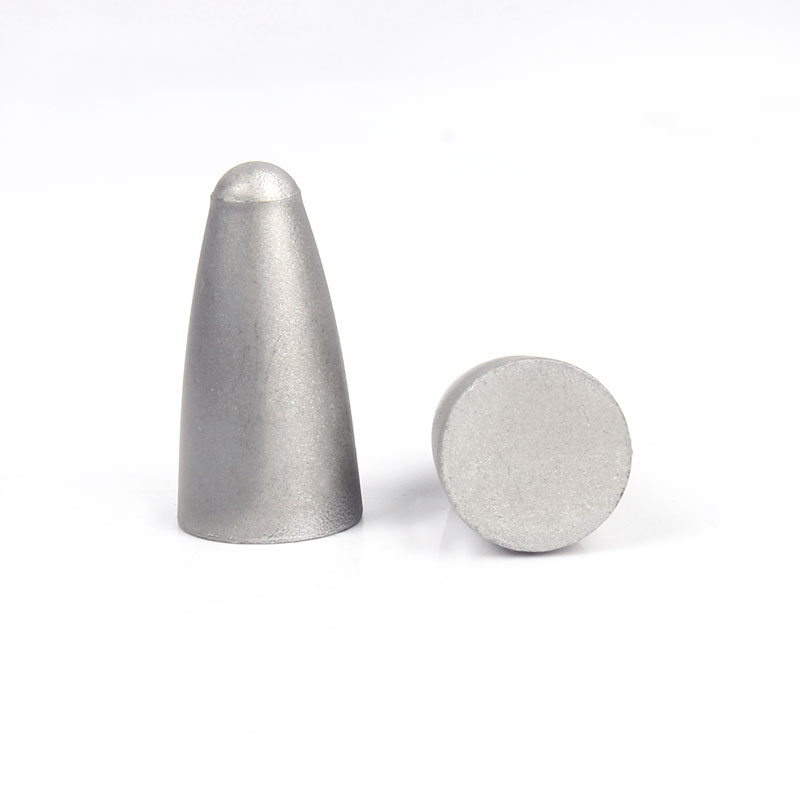

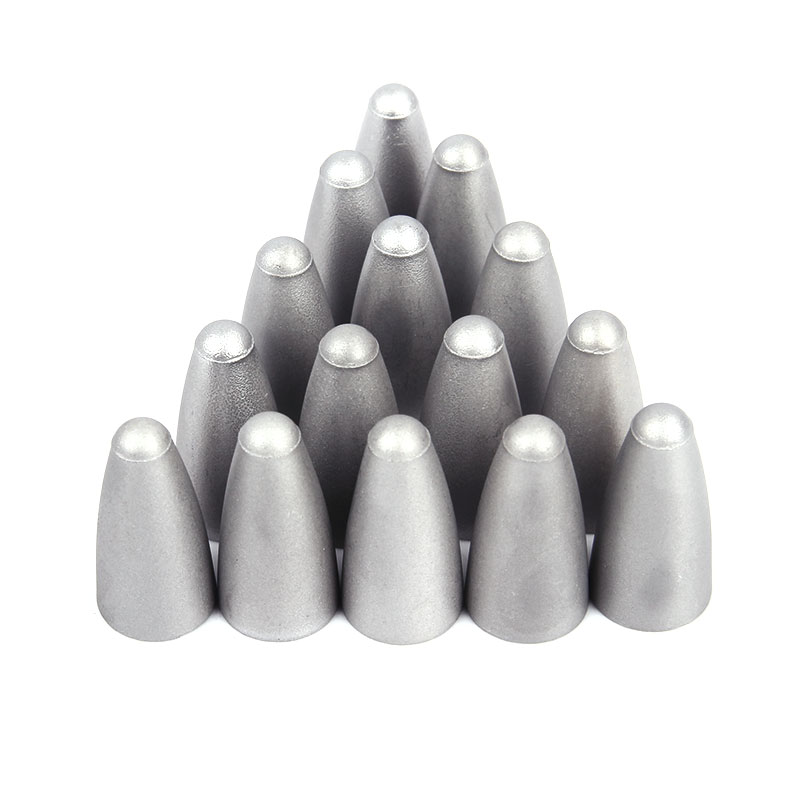

Product Dispaly

Specifications

Cemented Carbide Grade		JZ06U	JZ08U	JZ12U	JZ12U-T	JZ10S	JZ10F
WC	％	94	92	88	88	90	90
CO	％	6	8	12	12	10	10
GRAIN SIZE	μm	0.4	0.4	0.4	0.4	0.6	0.8
DENSITY	G / c m³	14.85	14.65	14.25	14.20	14.40	14.40
HRD	H R A	94.0	93.6	92.5	93.0	92.1	91.8
TRS	N / m m²	≥4000	≥4000	≥3800	≥3800	≥3800	≥3800

GRADE	The Grade Recommend
JZ06U	This tungsten carbide rod is with 0.4μm ultrafine particles and CO 6%. Be suitable for processing aluminum- magnesium alloy, glass fiber, carbon fiber, wood, hard plastic, etc. Recommend for making micro tools and drills.
JZ08U	This tungsten carbide rod is with 0.4μm ultrafine particles and CO 8%. Be suitable for processing resin, wood, titanium alloy, stainless steel, copper-aluminum alloy, composite material. Recommend making high speed drill, end mill, graver and micro-drill PCB with diameter less than 0.8mm.
JZ12U	This tungsten carbide rod is with 0.4μm ultrafine particles and CO 12%. Be suitable for semi-finishing and finishing process of stainless steel, mold steel and normal titanium alloy, etc. Recommend for making all types of high speed end mills, reamers and gravers.
JZ12U-T	This tungsten carbide rod is with 0 . 4 μ m ultrafine particles and CO 12 %, higher hardness . Be suitable for finishing process of stainless steel , mold steel and normal titanium alloy , etc . Recommend for making all types of high speed end
JZ10S	This tungsten carbide rod is with 0 . 6 μ m Sub - micron particles and CO 10 %, which is widely used in cutting tools . Be suitable for rough finishing , semi - finishing and finishing of mold steel , grey cast iron , austenitic stainless steel and heat - resistant alloy . Recommend for making normal drill and end mill
JZ10F	This tungsten carbide rod is with 0 . 8 μ m Sub - micron particles and CO 10 %. Be suitable for rough finishing and semi - finishing of normal steel , cast iron and stainless steel . Recommend for making normal drill and end mill

Be processed material	Suitable grand
	First chioce	Wear-resisting	High toughness	High toughness
Low-alloy steel(intensisty700 N/mm²)	J Z 1 0 S			J Z 5
Alloy steel(intensisty700 N/mm²)	J Z 1 0 S	J Z 5		J Z 5
Stainless steel	J Z 1 0 S	J Z 5
Csst iron		J Z 0 6 U
Aluminum alloy,Copper,Plastic	J Z 0 6 U			J Z 5
Graphite	JZ06U+COATING
Titanium alloy,Heat-resisting alloy	J Z 1 0 S	J Z 5
Hardened steel(hardness? 60HRC)	J Z 1 2 U	J Z 1 2 U - T
Reamer	J Z 0 6 U
Flushes the needle,Drift,Mold	J Z 1 0 F
PCB drill bit,Aluminum/copper sheet	J Z 0 6 U
Drill bit	J Z 1 0 S		J Z 5
